NAVIGATION SYSTEM, Diagnostic DTC:B158F

DTC Code DTC Name
B158F AV Signal Stoppage (Low Battery Voltage)

DESCRIPTION

This DTC is stored when a video or audio signal is interrupted due to battery voltage input to the radio and display receiver assembly dropping temporarily.

DTC No. Detection Item DTC Detection Condition Trouble Area
B158F AV Signal Stoppage (Low Battery Voltage) A video or audio signal is interrupted when the battery voltage drops

  • Radio and display receiver assembly

  • Harness or connector

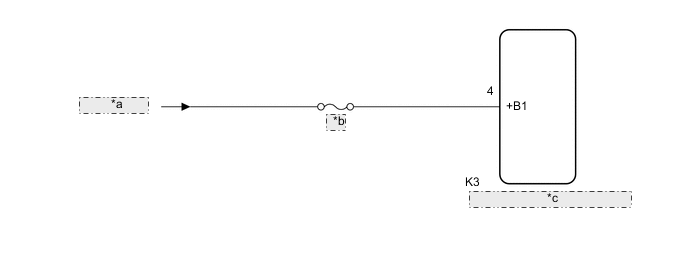

WIRING DIAGRAM

B006XIEE51
*a from Battery
*b TV
*c Radio and Display Receiver Assembly

CAUTION / NOTICE / HINT

Note


  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

    Click here

  • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:


    • A communication malfunction DTC may be stored.

    • The radio and display receiver assembly may not operate normally.

  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK VEHICLE SIGNAL (OPERATION CHECK)


    1. B006ZQH

      Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check.

      Click here

    2. Measure the battery voltage.

      Standard Voltage
      11 to 14 V

      Tech Tips

      This display is updated once per second.

      Result
      Proceed to
      OK
      NG

    NG

    CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY POWER SOURCE) Click here

    OK

  2. CHECK DTC


    1. Clear the DTCs.


      Body Electrical > Navigation System > Clear DTCs

    2. Recheck for DTCs and check that no DTCs are output.


      Body Electrical > Navigation System > Trouble Codes
      OK
      No DTCs are output.
      Result
      Proceed to
      OK
      NG

    OK

    END

    NG

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here

  3. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY POWER SOURCE)


    1. Disconnect the K3 radio and display receiver assembly connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      K3-4 (+B1) - Body ground Always 11 to 14 V
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
