NAVIGATION SYSTEM PARTS LOCATION

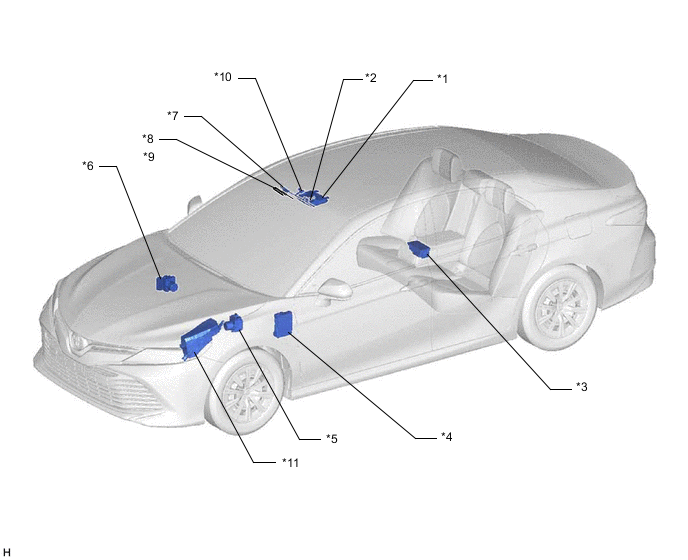

ILLUSTRATION
| *1 | ROOF CONSOLE BOX SUB-ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | COOLER CONTROL SWITCH ASSEMBLY (w/ Cooler Control Switch Assembly) |
*4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-B NO. 2 FUSE - PANEL FUSE - METER-IG2 FUSE |
| *5 | SKID CONTROL ECU (Brake Actuator Assembly) (for RHD) | *6 | SKID CONTROL ECU (Brake Actuator Assembly) (for LHD) |
| *7 | TELEVISION ANTENNA ASSEMBLY (w/ Digital TV Function) | *8 | WINDOW GLASS ANTENNA WIRE (w/ Digital TV Function) |
| *9 | - DIGITAL TV | *10 | NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ Digital TV Function) |
| *11 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - TV FUSE |
- | - |
ILLUSTRATION
Figure 1. for RHD
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | NAVIGATION ANTENNA ASSEMBLY | *8 | ANTENNA CORD SUB-ASSEMBLY (for Navigation Antenna) |
| *9 | DLC3 | *10 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) |
| *11 | NAVIGATION ECU | *12 | NO. 1 NAVIGATION WIRE |
ILLUSTRATION
Figure 2. for LHD
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY (for Front Side) |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | NAVIGATION ANTENNA ASSEMBLY | *8 | ANTENNA CORD SUB-ASSEMBLY (for Navigation Antenna) |
| *9 | DLC3 | *10 | NAVIGATION ECU |
| *11 | NO. 1 NAVIGATION WIRE | - | - |
ILLUSTRATION
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | REAR SPEAKER ASSEMBLY LH |
| *7 | REAR SPEAKER ASSEMBLY RH | - | - |
ILLUSTRATION
| *1 | WINDOW GLASS ANTENNA WIRE | *2 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
| *3 | NO. 2 AMPLIFIER ANTENNA ASSEMBLY | *4 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 4 ANTENNA CORD SUB-ASSEMBLY | *6 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY (w/ DAB Function) |
| *7 | ANTENNA CORD SUB-ASSEMBLY (for Rear Side) | *8 | - DAB (w/ DAB Function) |
| *9 | - FM MAIN - AM |
*10 | - FM SUB |
