NAVIGATION SYSTEM Voice Guidance does not Function

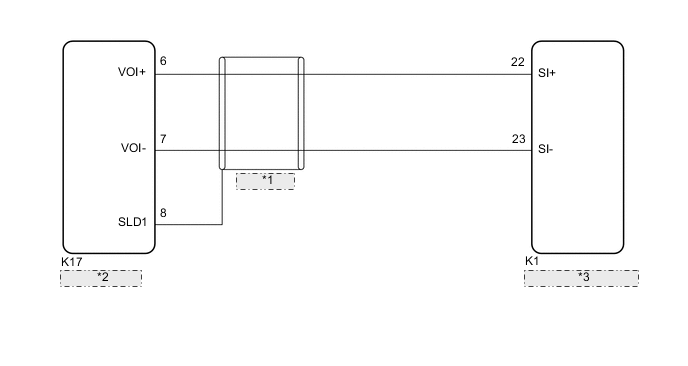

WIRING DIAGRAM

B006Y7WE02
*1 (Shielded)
*2 Navigation ECU
*3 Radio and Display Receiver Assembly

PROCEDURE


  1. CHECK VOICE GUIDANCE SETTING


    1. Check that the voice guidance settings are not off.

      OK
      Voice guidance settings are not off.
      Result
      Proceed to
      OK
      NG

    NG

    CHANGE VOICE GUIDANCE SETTINGS TO ON

    OK

  2. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NAVIGATION ECU)


    1. Disconnect the K1 radio and display receiver assembly connector.

    2. Disconnect the K17 navigation ECU connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K1-22 (SI+) - K17-6 (VOI+) Always Below 1 Ω
      K1-23 (SI-) - K17-7 (VOI-) Always Below 1 Ω
      K1-22 (SI+) or K17-6 (VOI+) - Body ground Always 10 kΩ or higher
      K1-23 (SI-) or K17-7 (VOI-) - Body ground Always 10 kΩ or higher
      K17-8 (SLD1) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
