REAR PACKAGE TRAY SPEAKER INSTALLATION

PROCEDURE

1. INSTALL REAR STEREO COMPONENT SPEAKER ASSEMBLY

   Note

   Do not touch the speaker cone.




   1. Connect the connector.

   2. Engage the guide to temporarily install the rear stereo component speaker assembly.

   3.

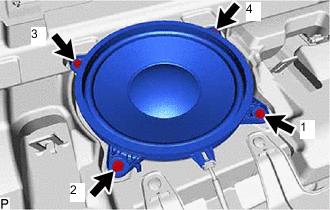

      Install the rear stereo component speaker assembly with the 4 bolts.

      Tech Tips

      Install the bolts in the order shown in the illustration.

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

   Click here

3. INSTALL REAR SEAT SHOULDER BELT HOLE COVER

   Click here

4. INSTALL CENTER STOP LIGHT SET

   Click here

5. CONNECT REAR SEAT OUTER BELT ASSEMBLY LH

   Click here

6. CONNECT REAR SEAT OUTER BELT ASSEMBLY RH

   Tech Tips

   Use the same procedure as for the LH side.

7. INSTALL INNER ROOF SIDE GARNISH LH

   Click here

8. INSTALL INNER ROOF SIDE GARNISH RH

   Tech Tips

   Use the same procedure as for the LH side.

9. INSTALL REAR SIDE SEATBACK ASSEMBLY LH

   Click here

10. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

11. INSTALL REAR SIDE SEATBACK ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

12. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Tech Tips

    Use the same procedure as for the LH side.

13. INSTALL REAR SEAT CUSHION LOCK HOOK

    Click here

14. INSTALL REAR SEAT CUSHION ASSEMBLY

    Click here

15. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Click here

16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    for 2AR-FE:

    Click here

    for A25A-FKS:

    Click here

    for 2GR-FKS:

    Click here

17. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

18. INSPECT SRS WARNING LIGHT

    Click here
