RADIO RECEIVER COMPONENTS

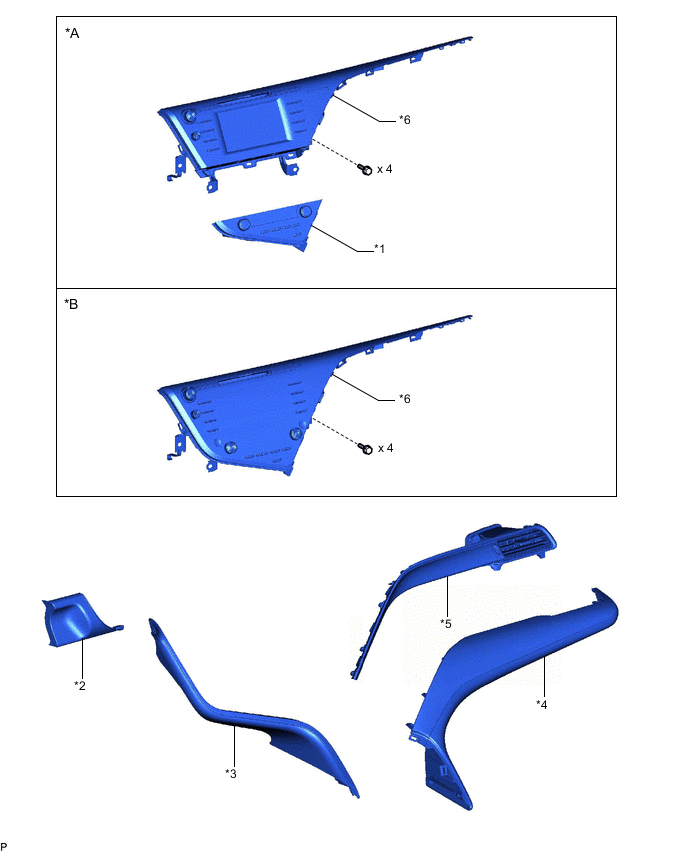

ILLUSTRATION
| *A | for 7 Inch Display | *B | for 8 Inch Display |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
| *3 | NO. 1 METER HOOD CLUSTER | *4 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *5 | NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET |

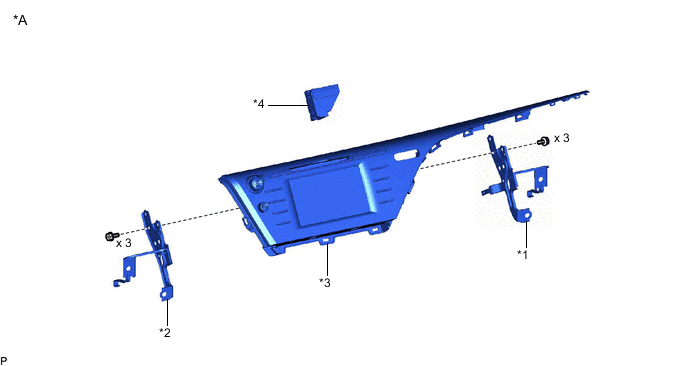

ILLUSTRATION
| *A | for 7 Inch Display | - | - |
| *1 | NO. 1 RADIO RECEIVER BRACKET | *2 | NO. 2 RADIO RECEIVER BRACKET |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | TELLTALE LIGHT ASSEMBLY |

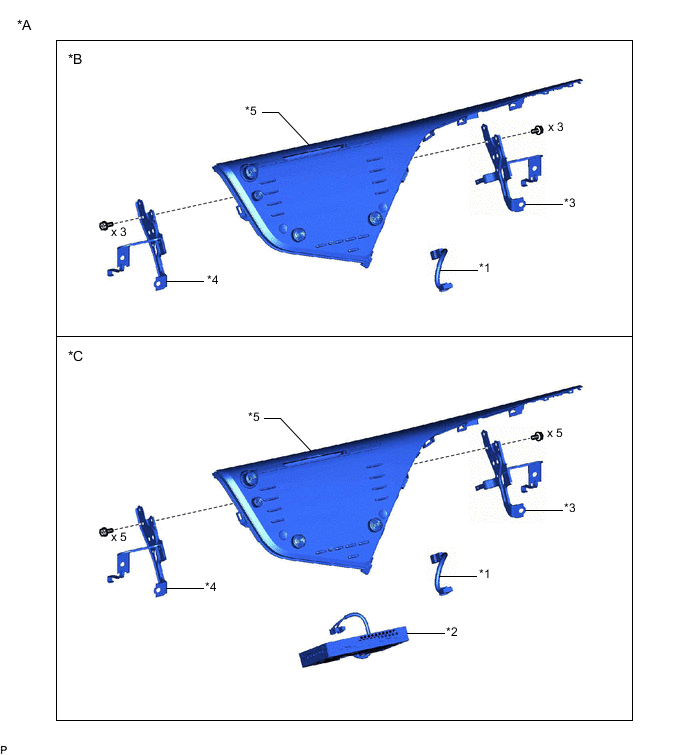

ILLUSTRATION
| *A | for 8 Inch Display | *B | w/o Navigation System |
| *C | w/ Navigation System | - | - |
| *1 | MULTI-MEDIA MODULE WIRE | *2 | NAVIGATION ECU WITH WIRE |
| *3 | NO. 1 RADIO RECEIVER BRACKET | *4 | NO. 2 RADIO RECEIVER BRACKET |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY | - | - |
