BRAKE BOOSTER(for RHD) REASSEMBLY

PROCEDURE


  1. INSTALL VACUUM WARNING SWITCH ASSEMBLY (for 2GR-FKS)


    1. Install a new check valve grommet to the brake booster assembly.

    2. B006Y9BC01

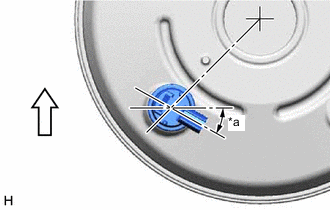

      *a 30° +/- 10°
      B006ZY0 Up

      Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

  2. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY


    1. Install a new check valve grommet to the brake booster assembly.

    2. B00707HC01

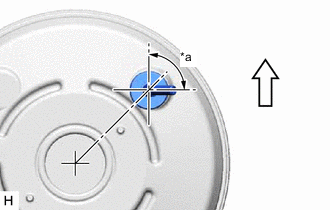

      *a 90° +/- 20°
      B006ZY0 Up

      Install the brake vacuum check valve assembly to the brake booster assembly as shown in the illustration.
