VSC OFF SWITCH COMPONENTS

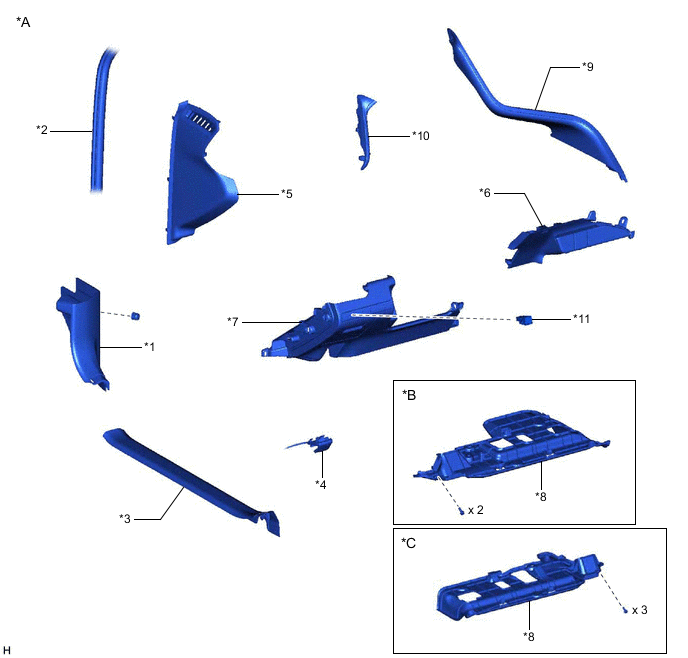

ILLUSTRATION
| *A | w/o Driver Side Knee Airbag | *B | for LHD |
| *C | for RHD | - | - |
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT SIDE PANEL LH | *6 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
| *7 | NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *9 | NO. 1 METER HOOD CLUSTER | *10 | NO. 2 METER HOOD CLUSTER |
| *11 | VSC OFF SWITCH | - | - |

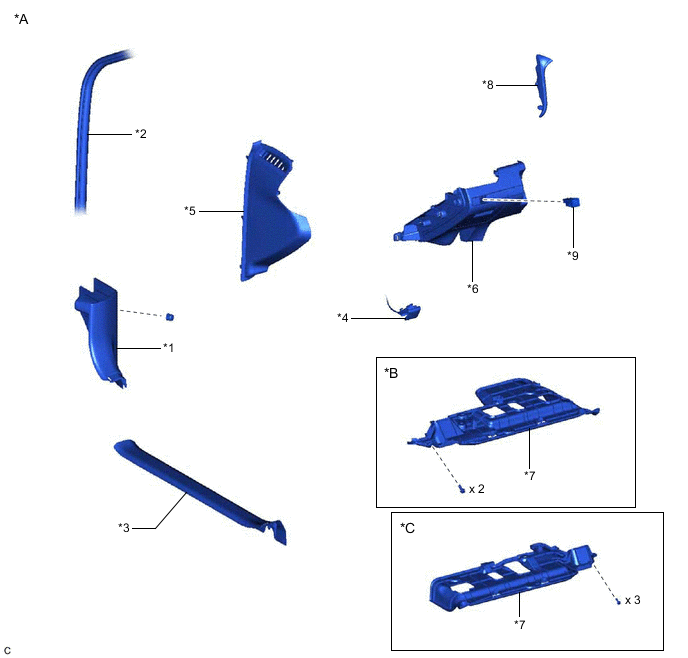

ILLUSTRATION
| *A | w/ Driver Side Knee Airbag | *B | for LHD |
| *C | for RHD | - | - |
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT SIDE PANEL LH | *6 | NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *8 | NO. 2 METER HOOD CLUSTER |
| *9 | VSC OFF SWITCH | - | - |
