TIRE PRESSURE WARNING RECEIVER COMPONENTS

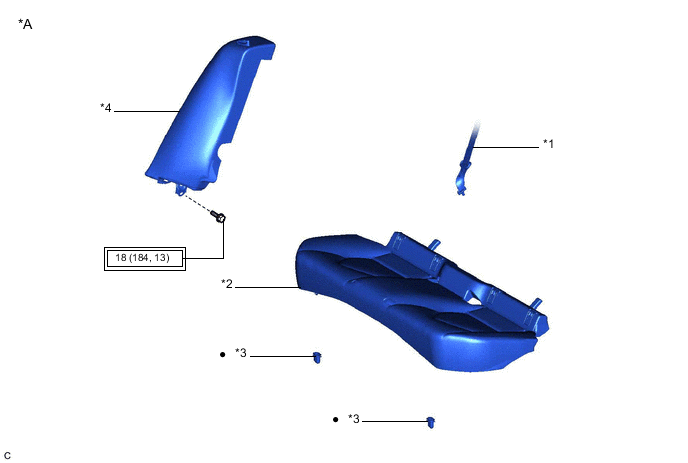

ILLUSTRATION
| *A | for Fold Down Seat Type | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CUSHION ASSEMBLY |
| *3 | REAR SEAT CUSHION LOCK HOOK | *4 | REAR SIDE SEATBACK ASSEMBLY RH |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

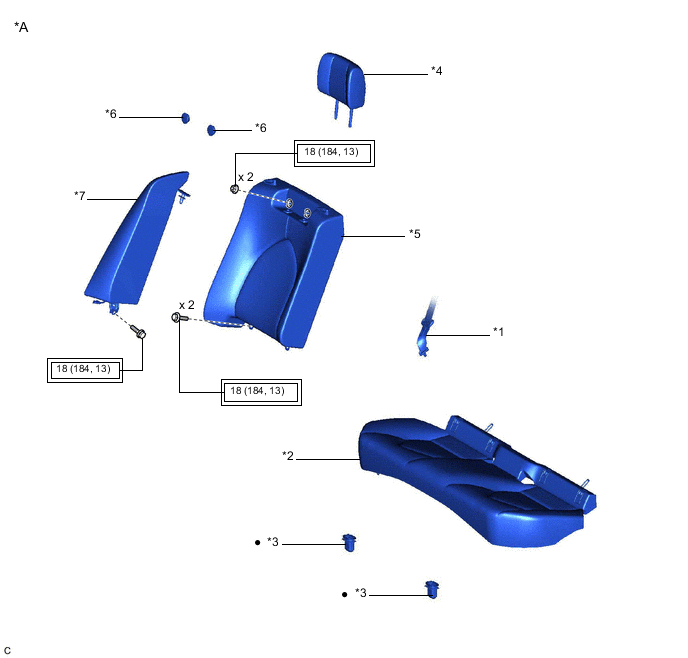

ILLUSTRATION
| *A | for Reclining Seat Type | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CUSHION ASSEMBLY |
| *3 | REAR SEAT CUSHION LOCK HOOK | *4 | REAR SEAT HEADREST ASSEMBLY |
| *5 | REAR SEATBACK ASSEMBLY RH | *6 | REAR SEATBACK COVER |
| *7 | REAR SIDE SEATBACK ASSEMBLY RH | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

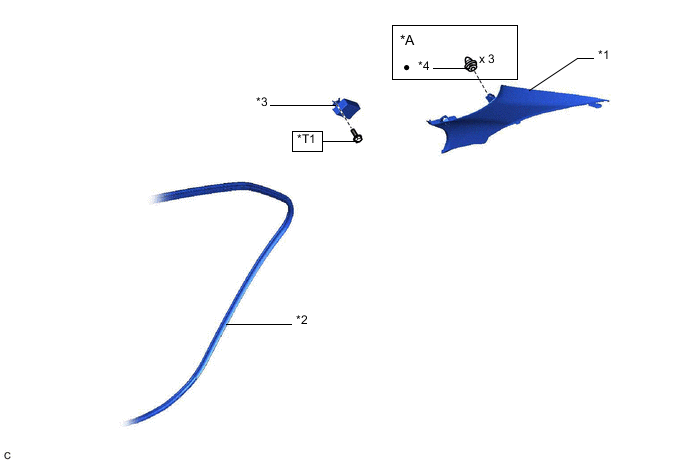

ILLUSTRATION
| *A | w/ Curtain Shield Airbag | - | - |
| *1 | INNER ROOF SIDE GARNISH RH | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | TIRE PRESSURE WARNING ECU AND RECEIVER | *4 | Clip |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| *T1 | for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
- | - |
