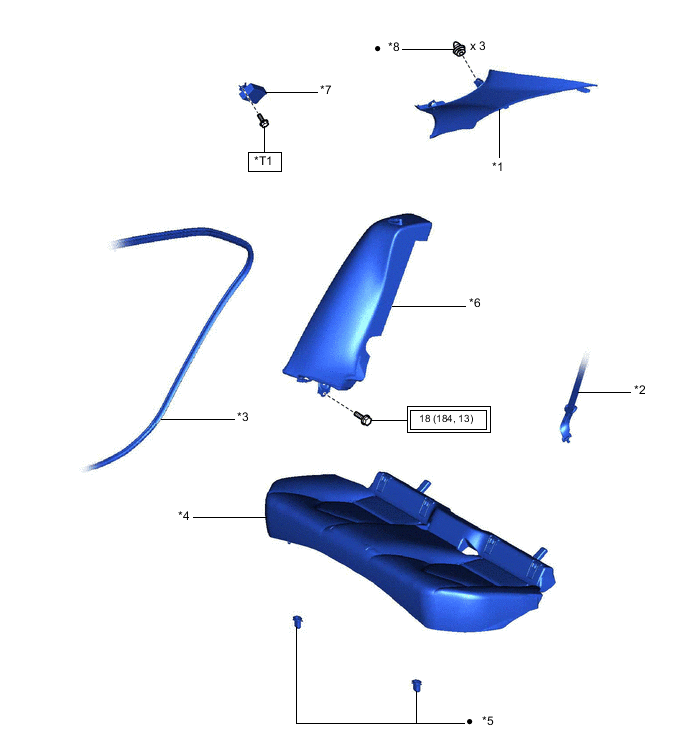

TIRE PRESSURE WARNING RECEIVER COMPONENTS
ILLUSTRATION
| *1 | INNER ROOF SIDE GARNISH RH | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SIDE SEATBACK ASSEMBLY RH |
| *7 | TIRE PRESSURE WARNING ECU AND RECEIVER | *8 | CLIP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| *T1 | for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
● | Non-reusable part |
