VEHICLE STABILITY CONTROL SYSTEM PARTS LOCATION
ILLUSTRATION
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
*2 | FRONT SPEED SENSOR RH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
*4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
*6 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |
*8 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
ILLUSTRATION

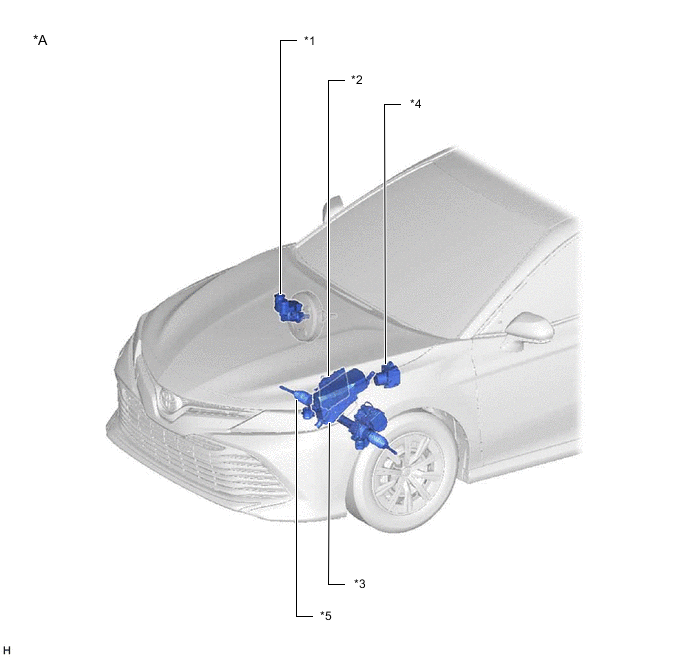

| *A | for LHD | *B | EXCEPT 2AR-FE |
| *1 | VACUUM WARNING SWITCH ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *3 | ECM | *4 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE |
| *5 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*6 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*2 | ECM |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE |
*4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
- | - |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | BRAKE HOLD SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | VSC OFF SWITCH | *4 | STEERING ANGLE SENSOR |
| *5 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE SYSTEM WARNING LIGHT (RED INDICATOR) - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - VSC OFF INDICATOR LIGHT - SLIP INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IG2 FUSE - STOP FUSE |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | STOP LIGHT CONTROL RELAY |
| *11 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | BRAKE HOLD SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | VSC OFF SWITCH | *4 | STEERING ANGLE SENSOR |
| *5 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE SYSTEM WARNING LIGHT (RED INDICATOR) - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - VSC OFF INDICATOR LIGHT - SLIP INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IG2 FUSE - STOP FUSE |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | STOP LIGHT CONTROL RELAY |
| *11 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | - | - |
