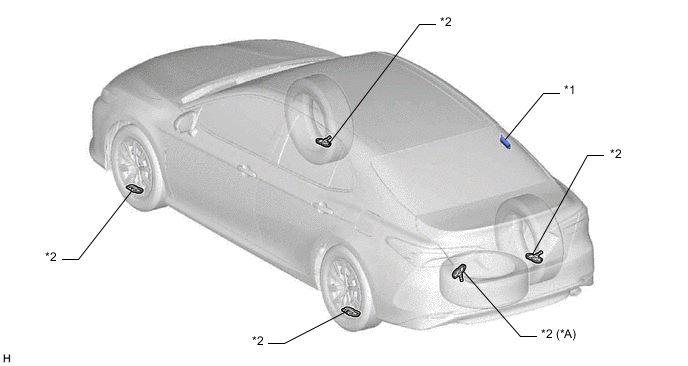

TIRE PRESSURE WARNING SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | w/ Full Size Spare Tire | - | - |
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER |
ILLUSTRATION
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT - MULTI-INFORMATION DISPLAY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | DLC3 |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - ECU-B NO. 2 FUSE |
ILLUSTRATION

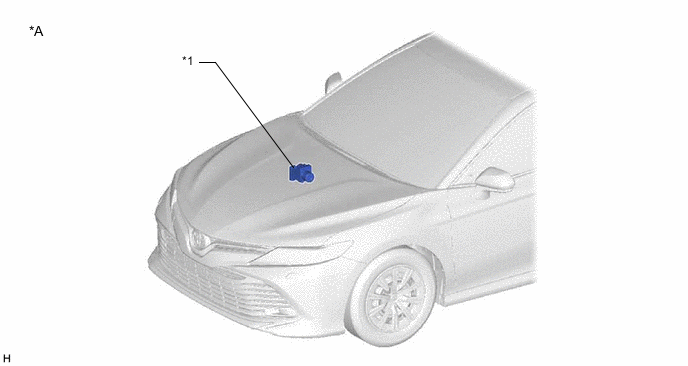

| *A | w/ Tire Inflation Pressure Display Function | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | - | - |
