FRONT LOWER SUSPENSION ARM(for A25A-FKS, 2GR-FKS) COMPONENTS

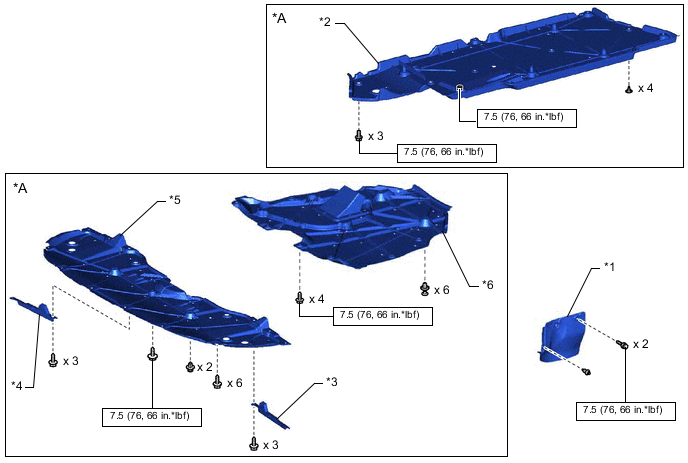

ILLUSTRATION
| *A | for A25A-FKS | - | - |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FLOOR COVER LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | NO. 1 ENGINE UNDER COVER | *6 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

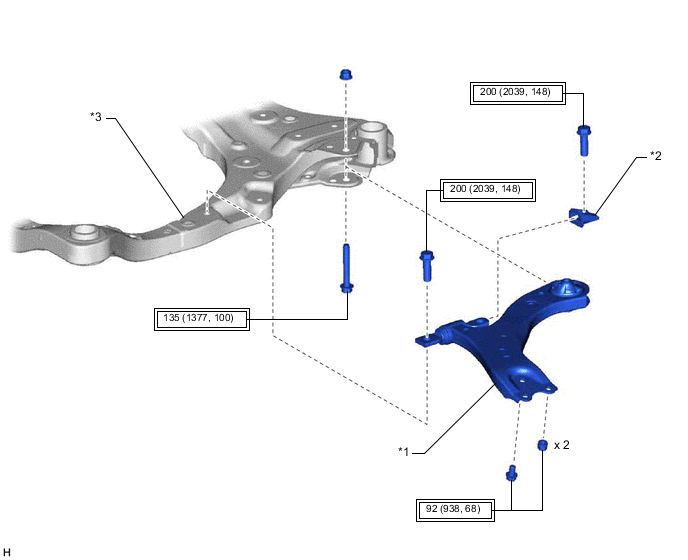

ILLUSTRATION
| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | *2 | FRONT LOWER ARM BUSHING STOPPER |
| *3 | FRONT FRAME ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
