FRONT LOWER SUSPENSION ARM(for 2AR-FE RH Side) INSTALLATION

PROCEDURE


  1. INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH


    1. Install the front lower arm bushing stopper to the front lower No. 1 suspension arm sub-assembly RH.

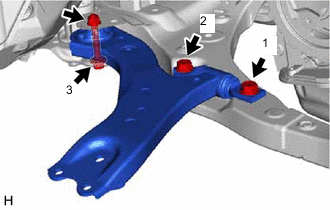

    2. B0070ILN01

      Install the front lower No. 1 suspension arm sub-assembly RH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.

      Torque:
      Bolt (1), (2)
      200 N*m  { 2039 kgf*cm, 148 ft.*lbf }
      Bolt (3)
      135 N*m  { 1377 kgf*cm, 100 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

    3. Connect the front lower No. 1 suspension arm sub-assembly RH to the front lower ball joint assembly RH with the bolt and 2 nuts.

      Torque:
      92 N*m  { 938 kgf*cm, 68 ft.*lbf }

  2. INSTALL FRONT FENDER APRON SEAL RH

    Click here

  3. INSTALL FRONT WHEEL

    Click here

  4. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Click here

  5. PERFORM INITIALIZATION

    Parking assist monitor system

    Click here for Initialization

    Click here for Calibration
    Lighting System (EXT) (w/ Automatic Headlight Beam Level Control System)

    Click here
