FRONT LOWER SUSPENSION ARM(for 2AR-FE LH Side) COMPONENTS

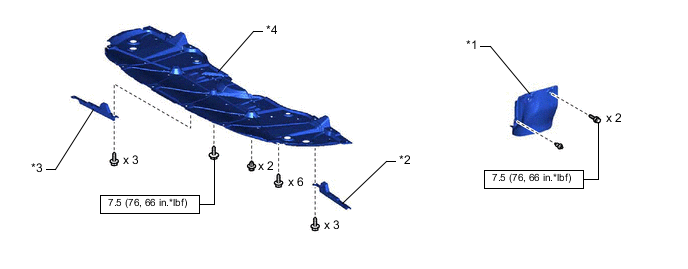

ILLUSTRATION
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD RH | *4 | NO. 1 ENGINE UNDER COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

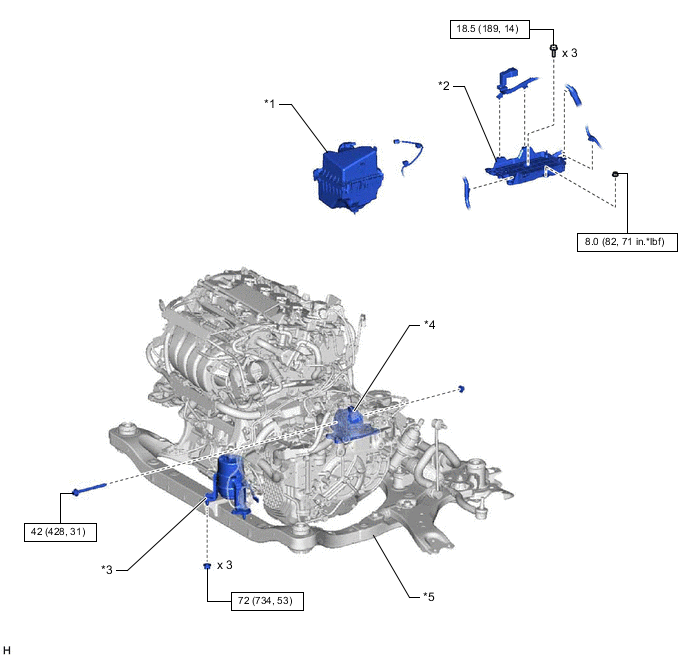

ILLUSTRATION
| *1 | AIR CLEANER ASSEMBLY | *2 | BATTERY CLAMP SUB-ASSEMBLY |
| *3 | FRONT ENGINE MOUNTING INSULATOR | *4 | ENGINE MOUNTING INSULATOR LH |
| *5 | FRONT FRAME ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

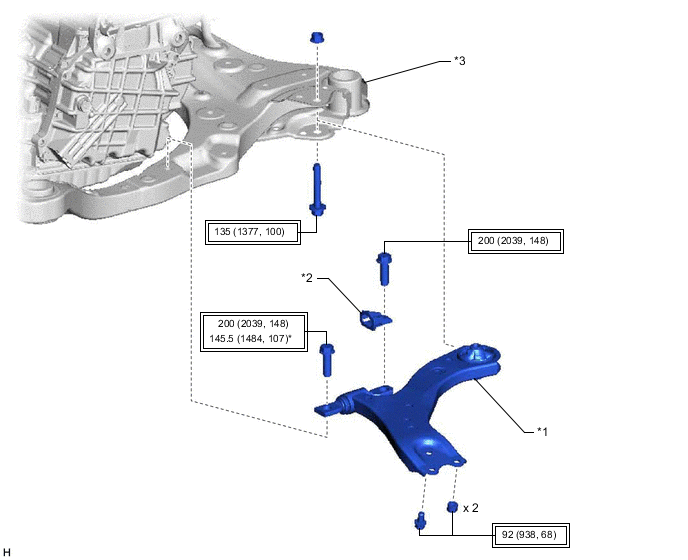

ILLUSTRATION
| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH | *2 | FRONT LOWER ARM BUSHING STOPPER |
| *3 | FRONT FRAME ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with ball joint lock nut wrench |
