FRONT SHOCK ABSORBER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front shock absorber assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front wheel alignment adjustment Perform system variant learning and acceleration sensor zero point calibration.

  • VSC disabled or malfunctioning

  • DTCs are output

  • Slip indicator light illuminated

  • ABS warning light illuminated

Click here

Suspension, tires, etc.

(The vehicle height changes because of suspension or tire replacement)

 Rear television camera assembly optical axis (Back camera position setting) Parking assist monitor system

for Initialization: Click here

for Calibration: Click here

Perform headlight ECU sub-assembly LH initialization Lighting System (EXT) (w/ Automatic Headlight Beam Level Control System)

Click here

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE FRONT WHEEL

    Click here

  2. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Click here

  3. SEPARATE FRONT STABILIZER LINK ASSEMBLY

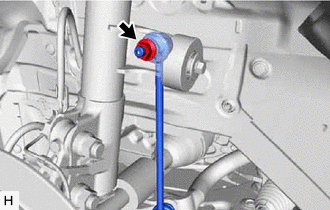

    1. B006YZM

      Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.

      Note

      Do not damage the boot of the ball joint.

      Tech Tips

      If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

  4. SEPARATE FRONT SPEED SENSOR


    1. B006XAH

      Remove the bolt, disengage the clamp and separate the front speed sensor and front flexible hose from the front shock absorber assembly.

      Note

      Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

  5. LOOSEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

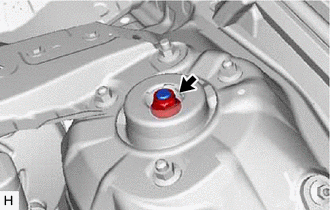

    1. B006Z5R

      Loosen the front support to front shock absorber nut.

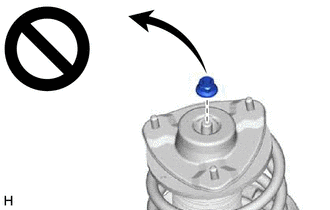

      CAUTION:


      • Only loosen the front support to front shock absorber nut if the front shock absorber with coil spring needs to be disassembled.

      • Only loosen the front support to front shock absorber nut, do not remove it.

      • If the front support to front shock absorber nut is removed with the front coil spring under tension, components of the front shock absorber with coil spring may fly off.

      B006Z0J

  6. REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

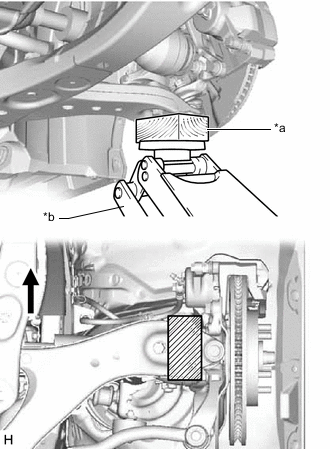

    1. B006X0CC01
      *a Wooden Block
      *b Jack
      B006Z38 Front of the Vehicle
      B006Y8C Wooden Block Placement Location

      Support the front lower No. 1 suspension arm sub-assembly using a jack and wooden block.

      Note

      Keep the front lower No. 1 suspension arm sub-assembly supported until installation of the front shock absorber with coil spring is complete.

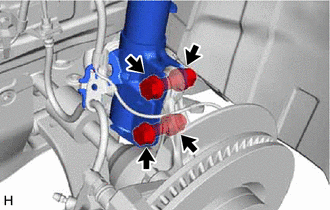

    2. B006Y47

      Remove the 2 bolts and 2 nuts, and separate the front shock absorber with coil spring (lower side) from the steering knuckle.

      Note


      • When removing the nuts, keep the bolts from rotating.

      • Use wire or an equivalent tool to hang the separated steering knuckle.

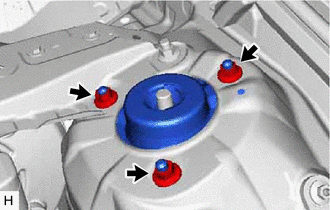

    3. B00705S

      Remove the 3 nuts and front shock absorber with coil spring.

  7. REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT


    1. B006WZ6N04

      Secure SST in a vise.

      SST
      09727-00051
      09727-30022   ( 09727-00010, 09727-00031 )

    2. Attach the hooks of each SST arm across the diameter of the coil spring.

      CAUTION:


      • B006WY9

        Make sure that the hooks are securely attached to the coil spring.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

      • B006XOV

        Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

      • B0070SR

        Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

    3. Install the stopper pins to the hooks of SST.

      CAUTION:


      • Make sure that the stopper pins are installed securely.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

      B0071FB

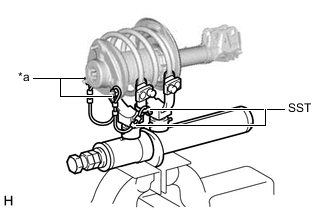

    4. B006X3JC01
      *a Vehicle Nut

      Install SST and 2 vehicle nuts to the upper support as shown in the illustration.

      SST
      09727-30022   ( 09727-00090, 09727-00100 )

    5. Using SST, compress the coil spring.

      CAUTION:


      • B006ZAV

        If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

      • B006Y65

        Do not compress the coil spring to the point where the coils touch each other.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

      • B006XFY

        Do not use an impact wrench.

      • If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.

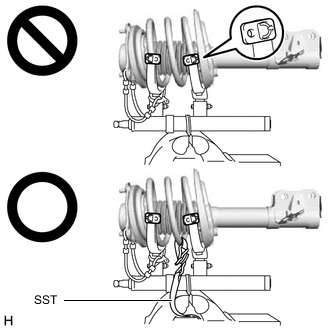

      • B0070OUN01

        If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

      • If a stopper pin is removed, install a coil spring stopper belt as shown in the illustration.

      • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

      SST
      09727-00110

    6. Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

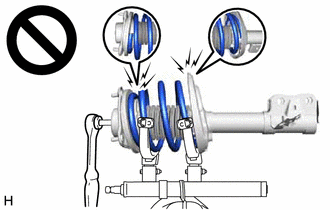

      CAUTION:


      • Do not remove the front support to front shock absorber nut while the coil spring is under tension.

      • If the front support to front shock absorber nut is removed with the coil spring under tension, components of the front shock absorber with coil spring may fly off, resulting in injury.

      B0070HH

  8. REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY


    1. Remove the front suspension support sub-assembly from the front shock absorber assembly.

  9. REMOVE STRUT MOUNTING BEARING WITH DUST COVER


    1. B0071EVC01
      *1 Front No. 1 Shock Absorber Dust Cover
      *a Claw

      Disengage the end of the front No. 1 shock absorber dust cover from the claws of the front shock absorber assembly.

    2. Remove the strut mounting bearing with dust cover from the front shock absorber assembly.

  10. REMOVE FRONT UPPER COIL SPRING INSULATOR

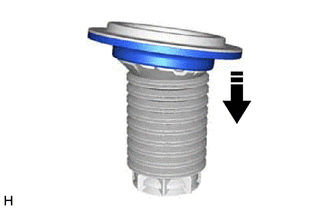

    1. B006ZQ5

      Remove the front upper coil spring insulator from the strut mounting bearing.

  11. REMOVE STRUT MOUNTING BEARING

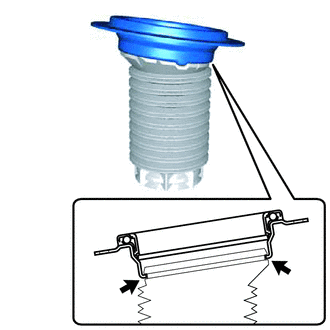

    1. B0070YW

      Disengage the top end of the front No. 1 shock absorber dust cover to remove the strut mounting bearing from the shock absorber dust cover.

  12. REMOVE FRONT COIL SPRING


    1. Remove the front coil spring and SST.

      Note

      Do not use an impact wrench. It will damage SST.

  13. REMOVE FRONT SPRING BUMPER


    1. Remove the front spring bumper from the front shock absorber assembly.

  14. REMOVE FRONT LOWER COIL SPRING INSULATOR


    1. Remove the front lower coil spring insulator from the front shock absorber assembly.

  15. REMOVE SUSPENSION TOWER DAMPER

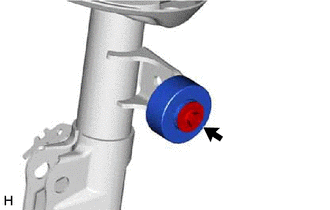

    1. B006ZV7

      Remove the bolt and suspension tower damper from the front shock absorber assembly.

  16. REMOVE FRONT SHOCK ABSORBER ASSEMBLY
