FRONT SUSPENSION MEMBER COMPONENTS

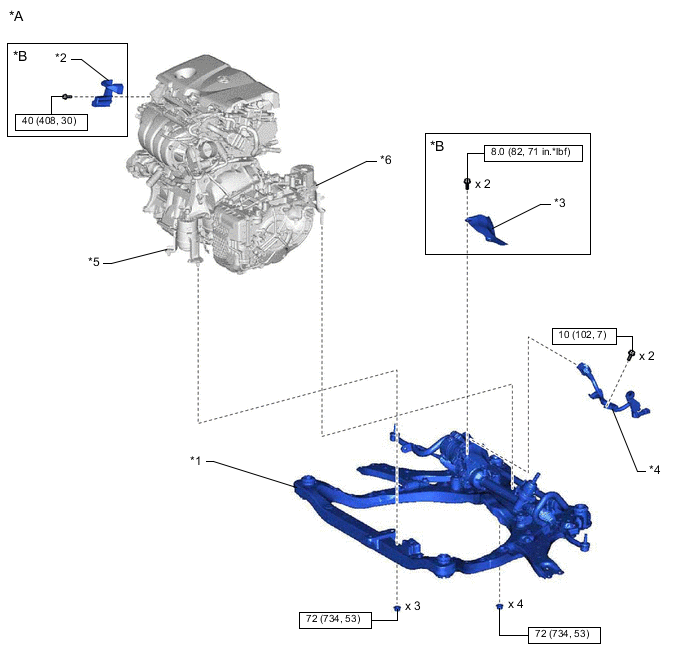

ILLUSTRATION
| *A | for LHD | *B | for A25A-FKS |
| *1 | FRONT FRAME ASSEMBLY | *2 | FUEL DELIVERY GUARD |
| *3 | STEERING GEAR HEAT INSULATOR | *4 | WIRE HARNESS |
| *5 | FRONT ENGINE MOUNTING INSULATOR | *6 | REAR ENGINE MOUNTING INSULATOR |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

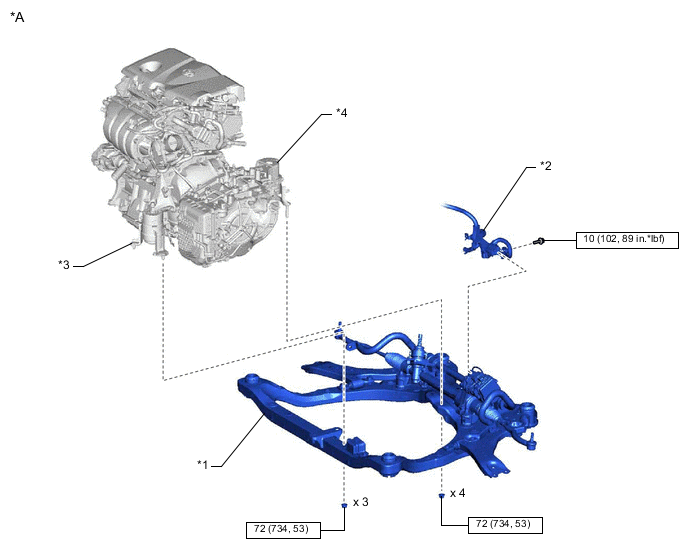

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | FRONT FRAME ASSEMBLY | *2 | WIRE HARNESS |
| *3 | FRONT ENGINE MOUNTING INSULATOR | *4 | REAR ENGINE MOUNTING INSULATOR |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

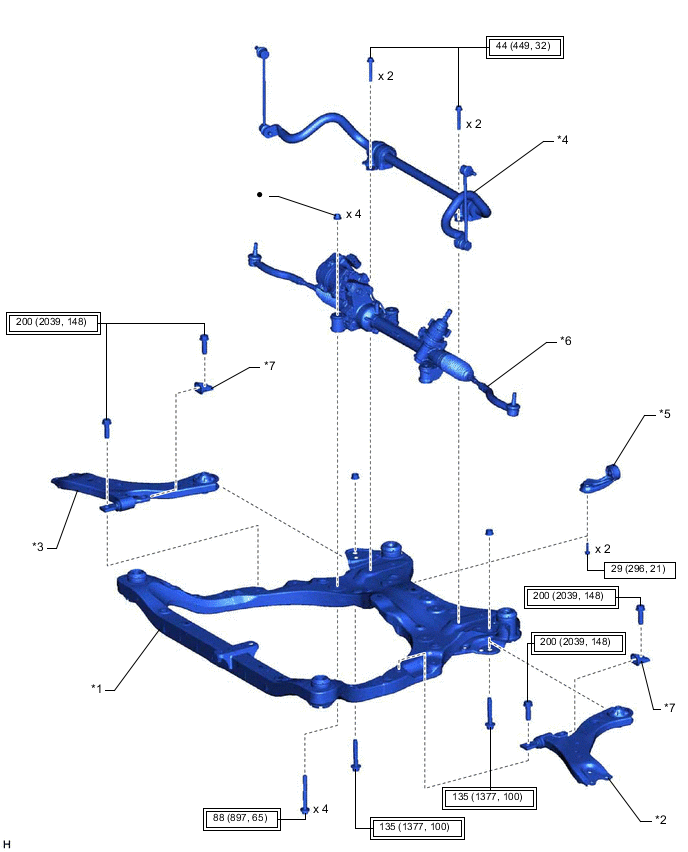

ILLUSTRATION
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH | *4 | FRONT STABILIZER BAR WITH BRACKET |
| *5 | NO. 2 EXHAUST PIPE SUPPORT BRACKET | *6 | RACK AND PINION POWER STEERING GEAR ASSEMBLY |
| *7 | FRONT LOWER ARM BUSHING STOPPER | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

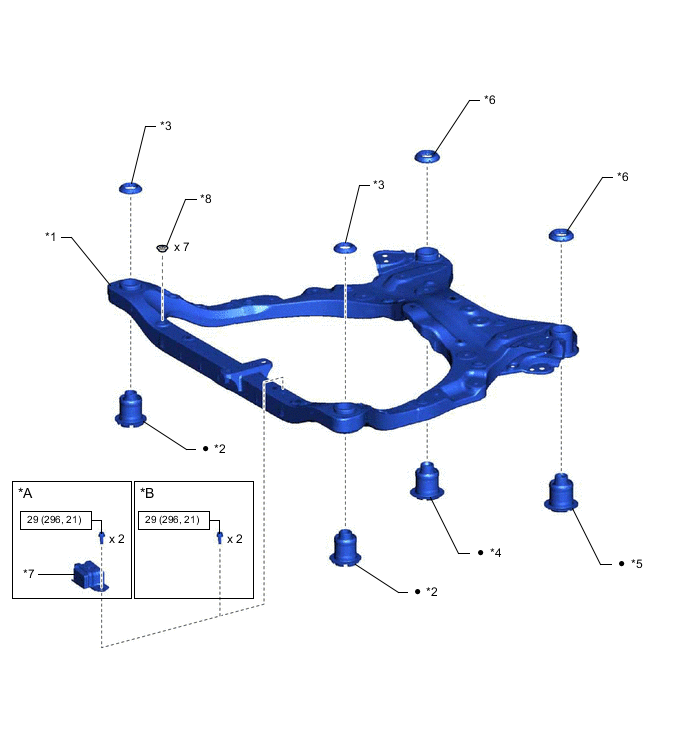

ILLUSTRATION
| *A | for A25A-FKS, 2GR-FKS | *B | for 2AR-FE |
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION |
| *3 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER | *4 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION |
| *5 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH | *6 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER |
| *7 | FRONT SUSPENSION MEMBER DYNAMIC DAMPER | *8 | HOLE PLUG |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
