REAR AXLE CARRIER INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. TEMPORARILY INSTALL REAR AXLE CARRIER SUB-ASSEMBLY


    1. Temporarily install the rear axle carrier sub-assembly to the rear shock absorber assembly with the nut and plate washer.

      Note

      Hold the rear axle carrier pin while rotating the nut.

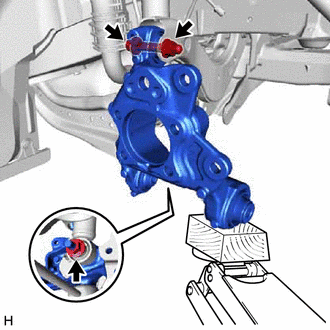

    2. B0070HP

      Temporarily install the rear axle carrier sub-assembly to the rear upper control arm assembly with the bolt and nut.

      Note


      • Insert the bolt with the threaded end facing the rear of the vehicle.

      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

    3. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.

      Torque:
      135 N*m  { 1377 kgf*cm, 100 ft.*lbf }

  2. INSTALL REAR FLEXIBLE HOSE BRACKET


    1. Install the rear flexible hose bracket to the rear axle carrier sub-assembly with the bolt.

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

  3. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

    Click here

  4. INSTALL REAR LOWER COIL SPRING INSULATOR

    Click here

  5. INSTALL REAR COIL SPRING

    Click here

  6. STABILIZE SUSPENSION

    Click here

  7. INSTALL REAR UPPER CONTROL ARM ASSEMBLY


    1. Install the rear upper control arm assembly to the rear axle carrier sub-assembly with the bolt.

      Torque:
      73 N*m  { 744 kgf*cm, 54 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  8. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

    Click here

  9. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY


    1. Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

      Click here

  10. INSTALL REAR SHOCK ABSORBER ASSEMBLY

    Click here

  11. INSTALL REAR STABILIZER LINK ASSEMBLY

    Click here

  12. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY

    Click here

  13. INSTALL REAR DISC

    Click here

  14. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

    Click here

  15. INSTALL REAR FLEXIBLE HOSE


    1. Install the rear flexible hose to the rear flexible hose bracket.

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

  16. INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY


    1. Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.

      Torque:
      15.5 N*m  { 158 kgf*cm, 11 ft.*lbf }

    2. Engage the 2 clamps.

    3. Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.

    4. Connect the No. 2 parking brake wire assembly connector to the rear axle hub and bearing assembly.

  17. INSTALL NO. 1 FLOOR UNDER COVER (w/ Cover)


    1. for RH Side:

      Click here

  18. INSTALL NO. 2 FLOOR UNDER COVER (w/ Cover)


    1. for LH Side:

      Click here

  19. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for LH Side)

    Click here

  20. INSTALL REAR WHEEL

    Click here

  21. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY


    1. Install the rear No. 2 suspension arm assembly (rear suspension member sub-assembly side) with the nut.

      Click here

  22. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Click here

  23. CHECK FOR SPEED SENSOR SIGNAL

    Click here

  24. PERFORM INITIALIZATION

    Parking assist monitor system

    Click here for Initialization

    Click here for Calibration
    Lighting system (EXT)

    Click here
