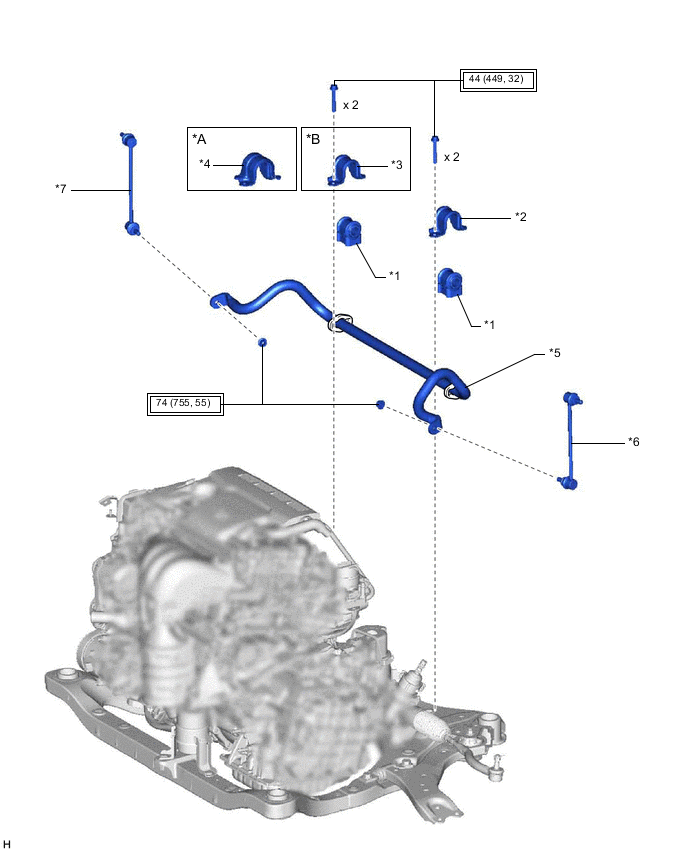

FRONT STABILIZER BAR COMPONENTS
ILLUSTRATION
| *A | for A25A-FKS | *B | for 2AR-FE, 2GR-FKS |
| *1 | FRONT NO. 1 STABILIZER BAR BUSHING | *2 | FRONT NO. 1 STABILIZER BRACKET LH |
| *3 | FRONT NO. 1 STABILIZER BRACKET RH | *4 | FRONT NO. 1 STABILIZER BRACKET SUB-ASSEMBLY RH |
| *5 | FRONT STABILIZER BAR | *6 | FRONT STABILIZER LINK ASSEMBLY LH |
| *7 | FRONT STABILIZER LINK ASSEMBLY RH | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
