EXHAUST PIPE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front exhaust pipe assembly (TWC: Rear Catalyst), center exhaust pipe assembly and tail exhaust pipe assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

  • Replacement of air fuel ratio sensor

  • Gas leak from exhaust system is repaired

 Inspection After Repair

  • Poor idle, etc.

  • Engine start function, etc.

Click here

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

B00719S

PROCEDURE


  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY

    CAUTION:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.


    1. B0070LI

      Remove the 2 bolts and disconnect the tail exhaust pipe assembly from the center exhaust pipe assembly.

    2. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.

    3. Remove the gasket from the center exhaust pipe assembly.

  2. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    CAUTION:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.


    1. B006YUW

      Remove the 2 bolts and disconnect the center exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst).

    2. Remove the center exhaust pipe assembly from the exhaust pipe support.

    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).

  3. REMOVE FRONT FLOOR COVER LH


    1. B006XXYN01

      Remove the 3 bolts and 4 clips (A).

    2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.

  4. REMOVE FRONT FLOOR COVER RH


    1. B006ZCAN01

      Remove the 3 bolts and 4 clips (A).

    2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover RH.

  5. REMOVE FRONT CENTER FLOOR BRACE


    1. B006XI5

      Remove the 4 bolts and front center floor brace from the vehicle body.

  6. REMOVE CENTER FLOOR CROSSMEMBER BRACE


    1. B006YWZ

      Remove the 4 bolts and center floor crossmember brace from the vehicle body.

  7. REMOVE AIR FUEL RATIO SENSOR (for Sensor 2)

    Click here

  8. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    CAUTION:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

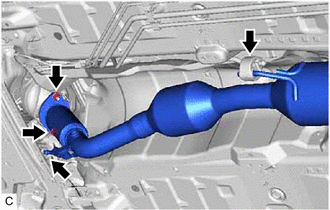

    1. B0070BH

      Remove the 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst).

    2. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the 2 exhaust pipe supports.

    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).

  9. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

    Tech Tips


    • Perform this procedure only when replacement of the tail exhaust pipe baffle sub-assembly is necessary.

    • If the tail exhaust pipe baffle sub-assembly is removed, replace it with a new one.


    1. B0070KE

      Remove the tail exhaust pipe baffle sub-assembly.
