FUEL PUMP ECU COMPONENTS

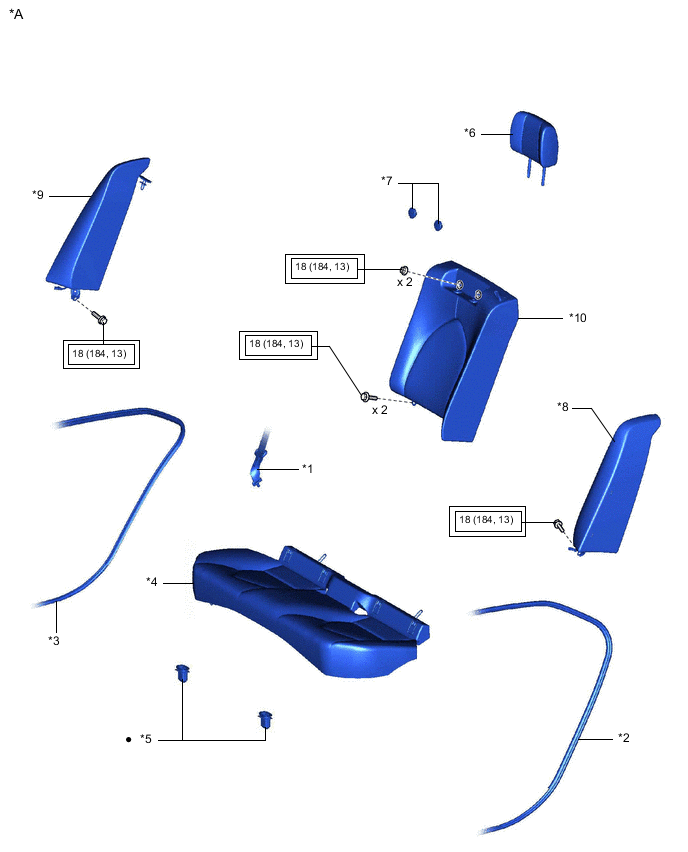

ILLUSTRATION
| *A | for Reclining Seat Type | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SEAT HEADREST ASSEMBLY LH |
| *7 | REAR SEATBACK COVER | *8 | REAR SIDE SEATBACK ASSEMBLY LH |
| *9 | REAR SIDE SEATBACK ASSEMBLY RH | *10 | REAR SEATBACK ASSEMBLY LH |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

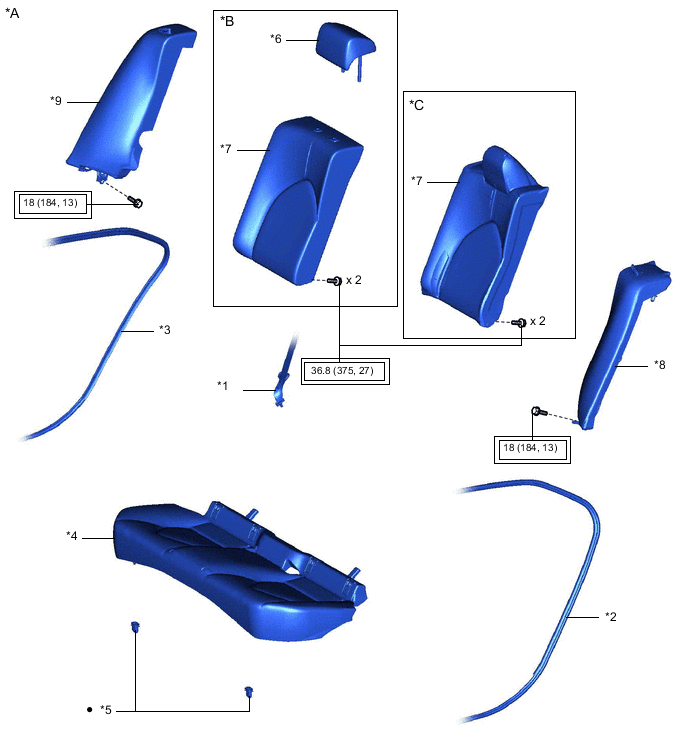

ILLUSTRATION
| *A | for Fold Down Seat Type | *B | w/ Removable Headrest |
| *C | w/o Removable Headrest | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SEAT HEADREST ASSEMBLY LH |
| *7 | REAR SEATBACK ASSEMBLY LH | *8 | REAR SIDE SEATBACK ASSEMBLY LH |
| *9 | REAR SIDE SEATBACK ASSEMBLY RH | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *A | w/o Rear Sunshade | *B | w/ Rear Sunshade |
| *1 | PACKAGE TRAY TRIM PANEL ASSEMBLY | *2 | REAR SEAT OUTER BELT ASSEMBLY LH |
| *3 | REAR SEAT OUTER BELT ASSEMBLY RH | *4 | REAR SEAT SHOULDER BELT HOLE COVER |
| *5 | INNER ROOF SIDE GARNISH LH | *6 | INNER ROOF SIDE GARNISH RH |
| *7 | ROOM PARTITION BOARD LH | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *1 | FUEL PUMP CONTROL ECU | *2 | FUEL PUMP CONTROL ECU BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
