REAR CRANKSHAFT OIL SEAL INSTALLATION

CAUTION / NOTICE / HINT

Note

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE


  1. INSTALL REAR ENGINE OIL SEAL


    1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.

      Note


      • Using height adjustment attachments and plate lift attachments, keep the engine assembly level.

      • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.

      • Using an engine sling device and engine lift, secure the engine assembly before servicing.

    2. Apply MP grease to the lip of a new rear engine oil seal.

      Note


      • Keep the lip free from foreign matter.

      • Do not allow MP grease to contact the dust seal.

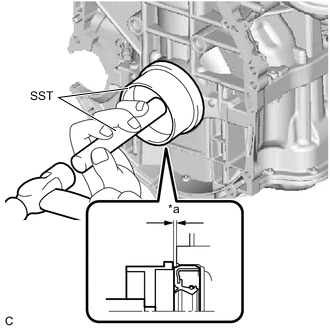

    3. B0070EEC01
      *a -0.9 to 1.1 mm

      Using SST and a hammer, tap in the rear engine oil seal.

      SST
      09223-15030
      09950-70010   ( 09951-07150 )
      Standard Depth
      -0.9 to 1.1 mm (-0.0354 to 0.0433 in.) (From the edge of the cylinder block sub-assembly and stiffening crankcase assembly)

      Note

      Do not tap in the rear engine oil seal at an angle.

  2. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE

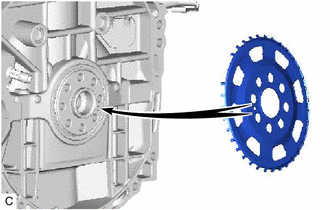

    1. B004KSL

      Install the No. 1 crankshaft position sensor plate.

      Tech Tips

      Align the pin hole of the No. 1 crankshaft position sensor plate with the pin of the crankshaft.

  3. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY


    1. B0071L5N01

      Using SST, hold the crankshaft pulley assembly.

      SST
      09213-54015
      09330-00021
    2. Clean the 8 bolts and bolt holes.

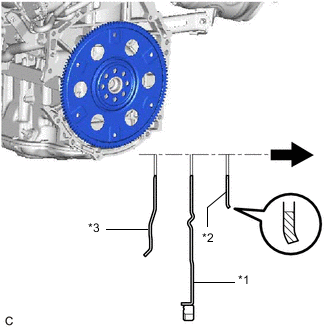

    3. B00703IC01
      *1 Drive Plate and Ring Gear Sub-assembly
      *2 Rear Drive Plate Spacer
      *3 No. 1 Crankshaft Position Sensor Plate
      B006Z38 Transaxle Side

      Install the drive plate and ring gear sub-assembly and rear drive plate spacer to the crankshaft.

      Note

      As the rear drive plate spacer, drive plate and ring gear sub-assembly and No. 1 crankshaft position sensor plate are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.

    4. B006Y02C77
      *a Adhesive

      Apply adhesive to 2 or 3 threads at the end of each of the 8 bolts.

      Adhesive
      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

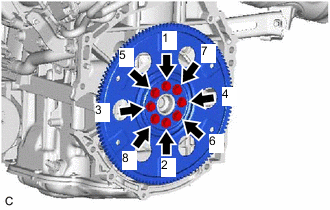

    5. B006WWQN01

      Install and uniformly tighten the 8 bolts in several steps in the sequence shown in the illustration.

      Torque:
      150 N*m  { 1530 kgf*cm, 111 ft.*lbf }

      Note

      Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.

  4. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY

    Click here
