AIR FUEL RATIO SENSOR(for Sensor 1) INSTALLATION

PROCEDURE

INSTALL AIR FUEL RATIO SENSOR

Tech Tips

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

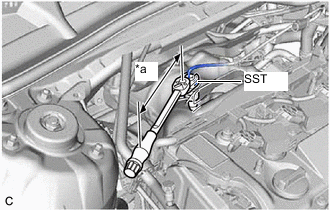

1. *a Torque Wrench Fulcrum Length

  Using SST, install the air fuel ratio sensor to the exhaust manifold (TWC: Front Catalyst).

  SST

  09224-00012

  Torque:

  Specified tightening torque

  44 N*m { 449 kgf*cm, 32 ft.*lbf }

  Note

  If the air fuel ratio sensor has been struck or dropped, replace it.
  Tech Tips
  - Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here
  - When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

    37.7 N*m (384 kgf*cm, 28 ft.*lbf)

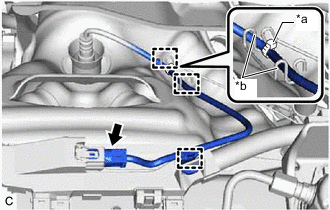

2. *a Tie Band

  *b Wire Harness Clamp

  Connect the air fuel ratio sensor connector.
3. Engage the 3 wire harness clamps so that the tie band is positioned as shown in the illustration.
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

Click here
INSPECT FOR EXHAUST GAS LEAK

Click here
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

  Click here

*a	Tie Band
*b	Wire Harness Clamp
