ENGINE OIL TEMPERATURE SENSOR INSTALLATION

PROCEDURE


  1. INSTALL ENGINE OIL TEMPERATURE SENSOR


    1. Install a new gasket to the engine oil temperature sensor.

    2. B006WYSN01

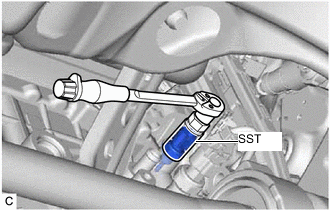

      Using SST, install the engine oil temperature sensor to the cylinder block sub-assembly.

      SST
      09817-33191
      Torque:
      19.6 N*m  { 200 kgf*cm, 14 ft.*lbf }

      Note

      If the engine oil temperature sensor has been struck or dropped, replace it.

    3. Connect the engine oil temperature sensor connector.

  2. CHECK ENGINE OIL LEVEL

    Click here

  3. INSPECT FOR ENGINE OIL LEAK

    Click here

  4. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Click here

  5. INSTALL NO. 1 ENGINE UNDER COVER

    Click here

  6. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Click here

  7. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Click here
