REAR TURN SIGNAL LIGHT BULB INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL REAR TURN SIGNAL LIGHT BULB


    1. Install the rear turn signal light bulb to the rear combination light socket and wire.

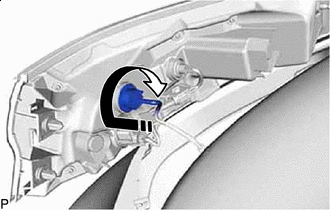

    2. B004NYJC01
      B006ZFL Install in this Direction

      Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to install them as a unit.

  2. INSTALL REAR COMBINATION LIGHT ASSEMBLY


    1. B004IR7C01
      *a Pin
      *b Guide
      B006ZFL Install in this Direction

      Engage the 3 guides and pin to temporarily install the rear combination light assembly as shown in the illustration.

    2. Install the rear combination light assembly with the 2 screws.

    3. Remove the protective tape.

  3. INSTALL REAR COMBINATION LIGHT COVER
