GENERAL MAINTENANCE BRAKE

Click here
Click here
Click here

  1. INSPECT BRAKE LINE PIPES AND HOSES

    Tip:

    Work in a well-lighted area. Turn the front wheels fully to the right or left before beginning the inspection.


    1. B0071RA

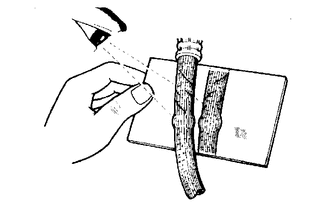

      Using a mirror, check the entire circumference and length of the brake lines and hoses for:


      • Damage

      • Wear

      • Deformation

      • Cracks

      • Kinks

      • Corrosion

      • Leaks

      • Twists

    2. Check all the clamps for tightness and check the connections for leakage.

    3. Check that the hoses and lines are not near sharp edges, moving parts or the exhaust system.

    4. Check that the lines are installed properly and pass through the center of the grommets.

  2. INSPECT BRAKE PEDAL


    1. Inspect the brake pedal.

      for LHD:Click here

      for RHD:Click here

  3. INSPECT PARKING BRAKE


    1. Inspect the parking brake.

  4. INSPECT FRONT BRAKE


    1. Inspect the front brake pads and discs.

      for 16 inch Front Disc Brake:Click here

      for 17 inch Front Disc Brake:Click here

  5. INSPECT REAR BRAKE PADS AND DISCS


    1. Inspect the rear brake pads and discs.

      Click here

  6. INSPECT OR CHANGE BRAKE FLUID


    1. Inspect or change the brake fluid.

      Click here

      Fluid
      SAE J1703 or FMVSS No. 116 DOT3
      SAE J1704 or FMVSS No. 116 DOT4
