AIR COOLED OIL COOLER COMPONENTS
ILLUSTRATION
| *1 | FRONT LOWER BUMPER ABSORBER | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD RH | *4 | NO. 1 ENGINE UNDER COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

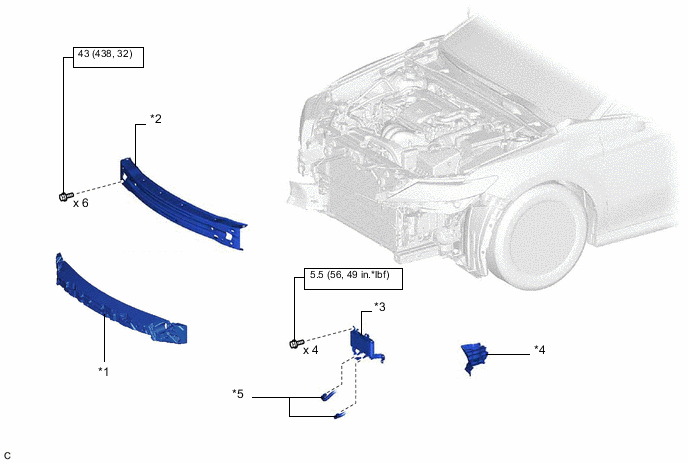

ILLUSTRATION
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | OIL COOLER ASSEMBLY | *4 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH |
| *5 | OIL COOLER HOSE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
