DIFFERENTIAL CASE INSPECTION

Click here Click here

PROCEDURE

1. Click here

   INSPECT DIFFERENTIAL CASE ASSEMBLY



   1.

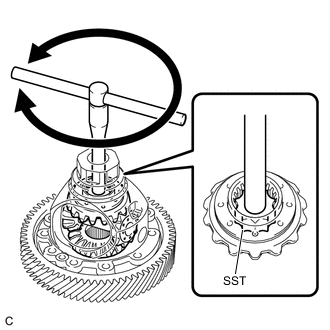

      Using SST, rotate the front differential side gear as shown in the illustration.

      09528-52010

      09528-05030

      Standard
      The front differential side gear does not lock when rotated in either direction.

      If the result is not as specified, replace the differential case assembly.
