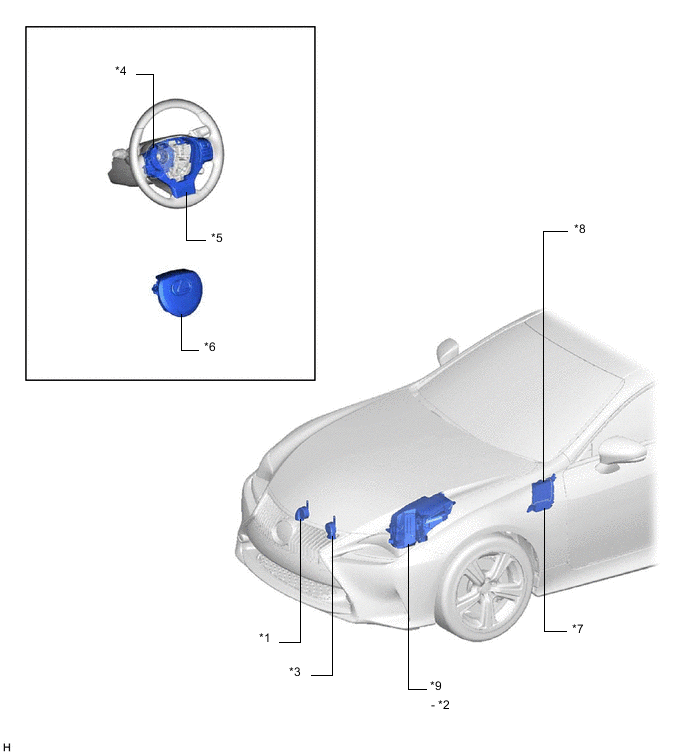

HORN SYSTEM PARTS LOCATION
ILLUSTRATION
| *1 | HIGH PITCHED HORN ASSEMBLY | *2 | HORN RELAY |
| *3 | LOW PITCHED HORN ASSEMBLY | *4 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | HORN BUTTON ASSEMBLY |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - HORN FUSE |
- | - |
