FRONT BUMPER DISASSEMBLY

PROCEDURE


  1. REMOVE RADIATOR GRILLE CENTER MOULDING LH (w/o LEXUS Parking Assist-sensor System)


    1. for Standard:


      1. B004E5Q

        Disengage the 2 claws to remove the radiator grille center moulding LH.

    2. for Sport Package:


      1. B004F6V

        Disengage the 2 claws to remove the radiator grille center moulding LH.

  2. REMOVE RADIATOR GRILLE CENTER MOULDING RH (w/o LEXUS Parking Assist-sensor System)

    Tech Tips

    Use the same procedure as for the LH side.

  3. REMOVE NO. 1 ULTRASONIC SENSOR (w/ LEXUS Parking Assist-sensor System)

    Click here

  4. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ LEXUS Parking Assist-sensor System)

    Click here

  5. REMOVE NO. 2 ULTRASONIC SENSOR (w/ LEXUS Parking Assist-sensor System)

    Click here

  6. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER (w/ LEXUS Parking Assist-sensor System)

    Click here

  7. REMOVE CONNECTOR COVER (w/o LEXUS Parking Assist-sensor System)


    1. B004GPA

      Disengage the clamp to remove the connector cover.

  8. REMOVE NO. 4 ENGINE ROOM WIRE (w/ LEXUS Parking Assist-sensor System)


    1. for Standard:


      1. Disengage the 15 clamps to remove the No. 4 engine room wire.

        B004E2R

    2. for Sport Package:


      1. Disengage the 13 clamps to remove the No. 4 engine room wire.

        B004FC6

  9. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

    Click here

  10. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  11. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER LH

    Click here

  12. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  13. REMOVE WASHER HOSE


    1. Disengage the 14 clamps to remove the washer hose.

      B004GRQ

  14. REMOVE WASHER HOSE CLIP

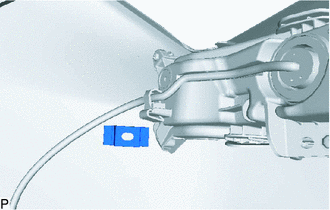

    1. B004GBY

      Remove the washer hose clip.

      Tech Tips

      Use the same procedure for the RH side and LH side.

  15. REMOVE CLEARANCE LIGHT ASSEMBLY LH

    Click here

  16. REMOVE CLEARANCE LIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  17. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Click here

  18. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tech Tips

    Use the same procedure as for the LH side.

  19. REMOVE AIR INTAKE DUCT LH

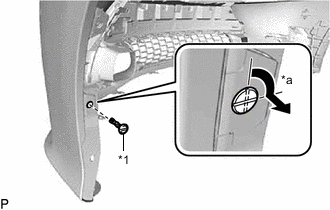

    1. B004ESYC01
      *1 Pin Hold Clip
      *a 90°

      Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

    2. B004GAR

      Remove the 2 screws.

    3. Remove the clip.

    4. B004EK7

      Disengage the claw and guide to remove the air intake duct LH.

  20. REMOVE AIR INTAKE DUCT RH

    Tech Tips

    Use the same procedure as for the LH side.

  21. REMOVE FOG LIGHT MOUNTING BRACKET LH

    B004ET5

    1. Disengage the 4 claws and remove the fog light mounting bracket LH.

  22. REMOVE FOG LIGHT MOUNTING BRACKET RH

    Tech Tips

    Use the same procedure as for the LH side.

  23. REMOVE FRONT FENDER LINER RETAINER


    1. B004FYE

      Disengage the 2 claws to remove the 2 front fender liner retainers.

      Tech Tips

      Use the same procedure for the RH side and LH side.

  24. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Standard)


    1. for Type A:


      1. B004F07

        Remove the 2 screws.

      2. B004EE2

        Disengage the 4 claws to remove the front bumper extension mounting bracket.

    2. for Type B:


      1. B004FYA

        Remove the 2 screws.

      2. B004EUF

        Disengage the 4 claws to remove the front bumper extension mounting bracket.

  25. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Sport Package)


    1. for Type A:


      1. B004FIH

        Remove the 2 screws.

      2. B004EQZ

        Disengage the 4 claws to remove the front bumper extension mounting bracket.

    2. for Type B:


      1. B004FAH

        Remove the 2 screws.

      2. B004FWY

        Disengage the 2 claws and 2 guides to remove the front bumper extension mounting bracket.

  26. REMOVE FRONT BUMPER HOLE COVER LH (for Standard)


    1. B004F62C01
      *a Hook

      Disengage the 2 claws.

    2. Disengage the hook to remove the front bumper hole cover LH.

  27. REMOVE FRONT BUMPER HOLE COVER LH (for Sport Package)


    1. B004GC8C01
      *a Hook

      Disengage the 3 claws.

    2. Disengage the hook to remove the front bumper hole cover LH.

  28. REMOVE RADIATOR GRILLE PROTECTOR

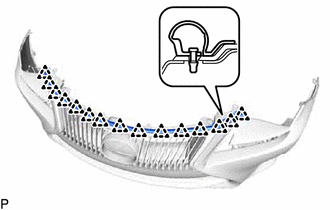

    1. B004FN7

      Disengage the 15 clips and remove the radiator grille protector.

  29. REMOVE FRONT BUMPER BRACKET LH


    1. B004FHS

      Remove the clip.

    2. Disengage the 2 guides to remove the front bumper bracket LH.

  30. REMOVE FRONT BUMPER BRACKET RH

    Tech Tips

    Use the same procedure as for the LH side.

  31. REMOVE LOWER RADIATOR GRILLE BRACKET

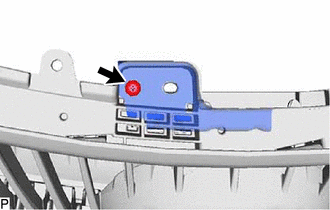

    1. A01WXZG

      Remove the clip.

    2. for Standard:

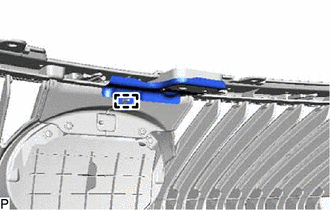

      1. A01WYIO

        Disengage the pin.

    3. Remove the lower radiator grille bracket.

  32. REMOVE NO. 1 RADIATOR GRILLE SEAL (for Standard)

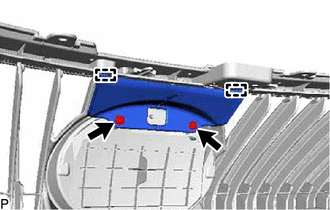

    1. A01WXAA

      Remove the 2 screws.

    2. Disengage the 2 guides to remove the No. 1 radiator grille seal.

  33. REMOVE FRONT ENERGY ABSORBER MOUNTING PLATE

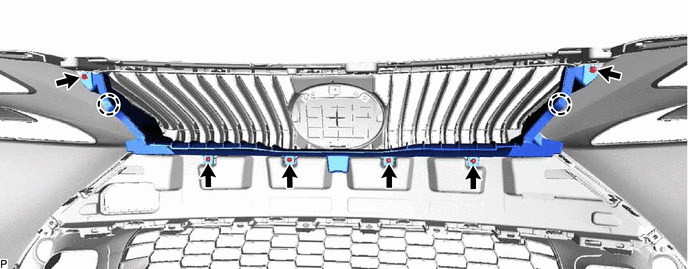

    1. Remove the 6 screws.

      A01WXF1

    2. Disengage the 2 claws to remove the front energy absorber mounting plate.

  34. REMOVE SYMBOL EMBLEM (w/o Dynamic Radar Cruise Control System)

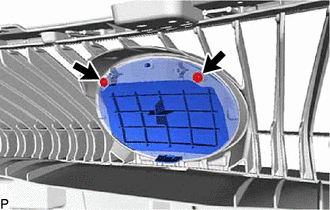

    1. A01WYAA

      Remove the 2 screws.

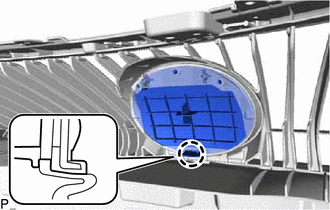

    2. A01WXGQ

      Disengage the claw to remove the symbol emblem.

  35. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/ Dynamic Radar Cruise Control System)

    Tech Tips

    Use the same procedure as for the symbol emblem.

  36. REMOVE NO. 2 RADIATOR GRILLE GARNISH (w/o Fog Light)


    1. B004F1U

      Remove the 3 screws.

    2. B004FV4

      Disengage the 2 claws and guide to remove the No. 2 radiator grille garnish.

  37. REMOVE RADIATOR GRILLE GARNISH (w/o Fog Light)

    Tech Tips

    Use the same procedure as for the No. 2 radiator grille garnish.

  38. REMOVE FOG LIGHT COVER LH (w/ Fog Light)


    1. B004G5B

      Remove the 2 screws.

    2. B004EMK

      Disengage the 2 claws and guide to remove the fog light cover LH.

  39. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    Tech Tips

    Use the same procedure as for the LH side.

  40. REMOVE RADIATOR GRILLE ASSEMBLY (for Standard)

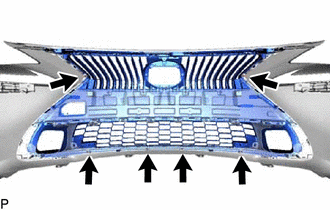

    1. A01WXD3

      Remove the 6 screws.

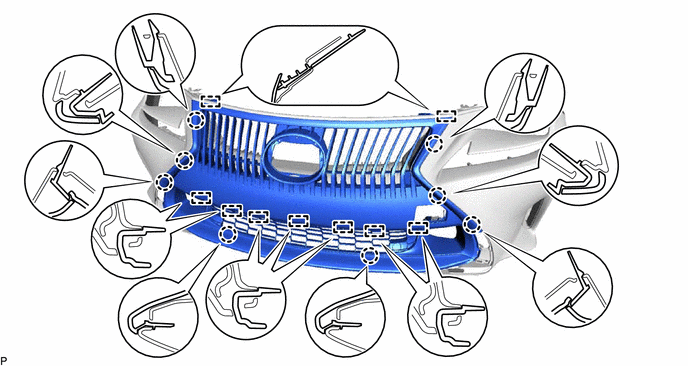

    2. Disengage the 8 claws and 9 guides to remove the radiator grille assembly.

      A01WXF8

  41. REMOVE RADIATOR GRILLE ASSEMBLY (for Sport Package)

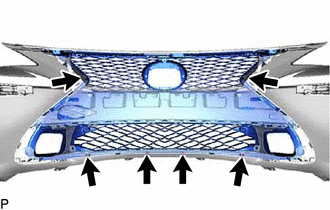

    1. A01WYL8

      Remove the 6 screws.

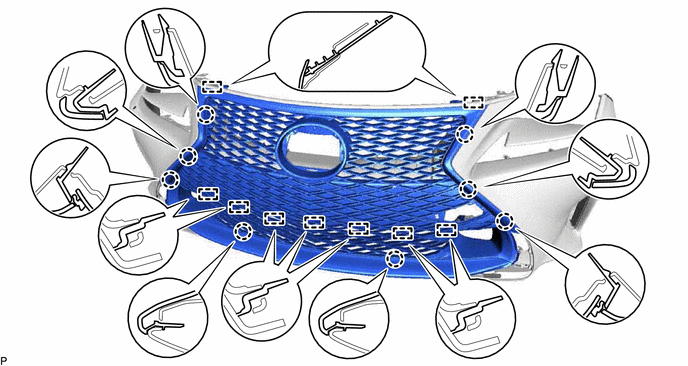

    2. Disengage the 8 claws and 9 guides to remove the radiator grille assembly.

      A01WXFE

  42. REMOVE RADIATOR GRILLE MOULDING (for Standard)

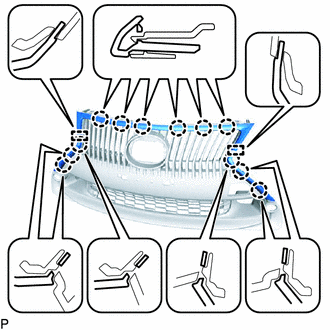

    1. A01WYQF

      Disengage the 12 claws and 2 guides to remove the radiator grille moulding.

  43. REMOVE RADIATOR GRILLE MOULDING (for Sport Package)

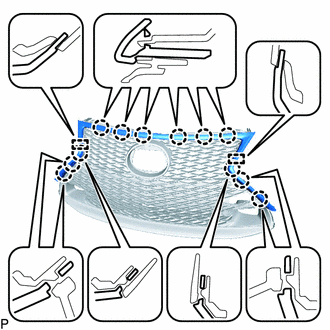

    1. A01WYNE

      Disengage the 12 claws and 2 guides to remove the radiator grille moulding.

  44. REMOVE NO. 3 RADIATOR GRILLE SEAL


    1. B004EN9

      Remove the No. 3 radiator grille seal.

  45. REMOVE NO. 2 RADIATOR GRILLE SEAL

    Tech Tips

    Use the same procedure as for the No. 3 radiator grille seal.

  46. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Standard)

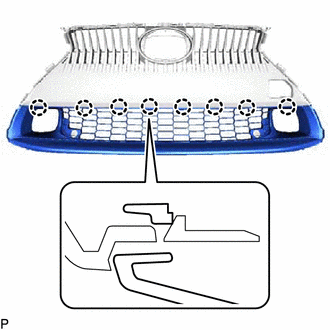

    1. A01WYPY

      Disengage the 8 claws to remove the lower radiator grille sub-assembly from the radiator grille.

  47. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Sport Package)

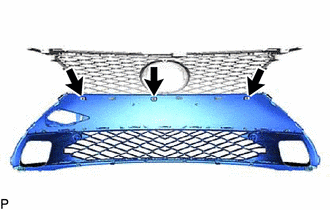

    1. A01WXFC

      Remove the 3 screws.

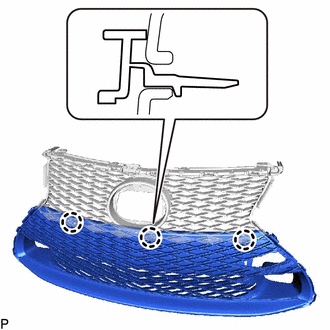

    2. A01WXJ2

      Disengage the 3 claws to remove the lower radiator grille sub-assembly from the radiator grille.

  48. REMOVE LOWER RADIATOR GRILLE MOULDING (for Sport Package)


    1. B004E63

      Disengage the 8 claws to remove the lower radiator grille moulding from the lower radiator grille.

  49. REMOVE FRONT BUMPER ENERGY ABSORBER

    B004F38

    1. Disengage the 2 guides to remove the front bumper energy absorber.

  50. REMOVE NO. 1 FRONT BUMPER SIDE SUPPORT

    Click here

  51. REMOVE POP-UP HOOD SENSOR ASSEMBLY

    Click here

  52. REMOVE THERMISTOR ASSEMBLY

    Click here

  53. REMOVE FRONT BUMPER REINFORCEMENT


    1. B004G5I

      Remove the 6 bolts and front bumper reinforcement.

  54. REMOVE FRONT BUMPER SIDE RETAINER LH


    1. B004GV6

      Remove the bolt.

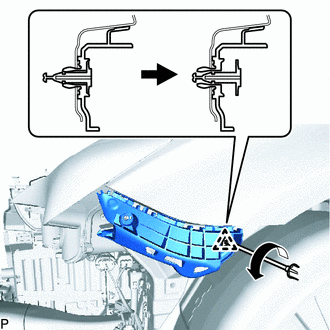

    2. B004F49

      Using a screwdriver, disengage the clip as shown in the illustration.

    3. B004GDO

      Disengage the claw to remove the front bumper side retainer LH.

  55. REMOVE FRONT BUMPER SIDE RETAINER RH

    Tech Tips

    Use the same procedure as for the LH side.
