AUTOMATIC HIGH BEAM SYSTEM PARTS LOCATION

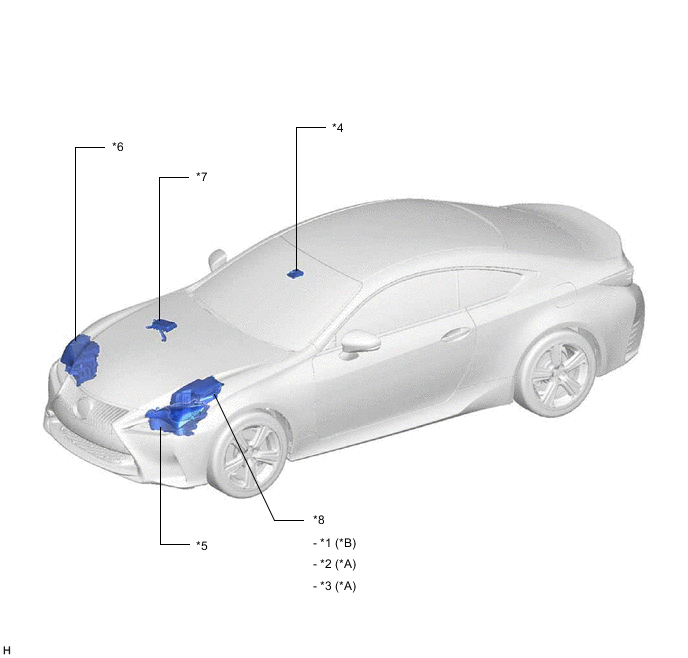

ILLUSTRATION
| *A | for Triple Beam Headlight | *B | for Single Beam Headlight |
| *1 | SEMICONDUCTOR PWR INTEGRATION ECU | *2 | MIR HTR/H-LP LH RELAY |
| *3 | H-LP RH RELAY | *4 | FORWARD RECOGNITION CAMERA |
| *5 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH (for Triple Beam Headlight) |
*6 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH (for Triple Beam Headlight) |
| *7 | SKID CONTROL ECU ASSEMBLY | *8 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP MAIN LH FUSE (for Triple Beam Headlight) - H-LP MAIN RH FUSE (for Triple Beam Headlight) |

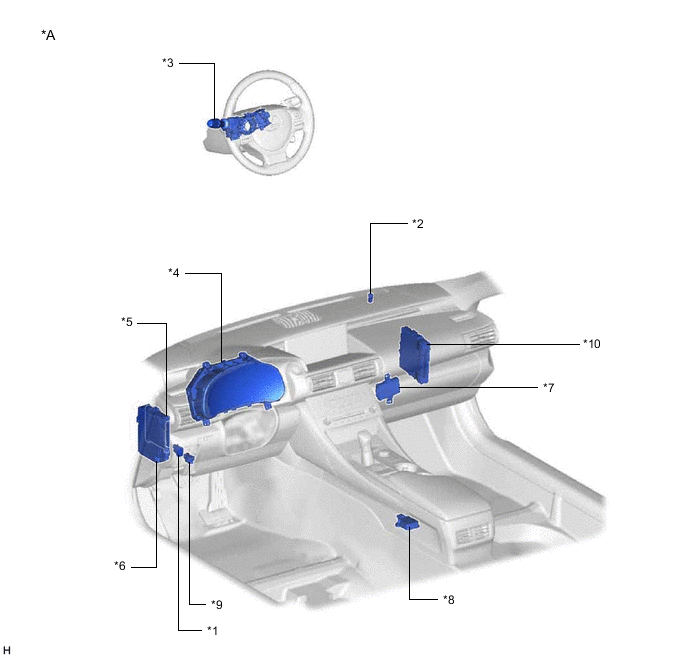

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AUTOMATIC HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
| *7 | NETWORK GATEWAY ECU | *8 | YAW RATE SENSOR |
| *9 | DLC3 | *10 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |

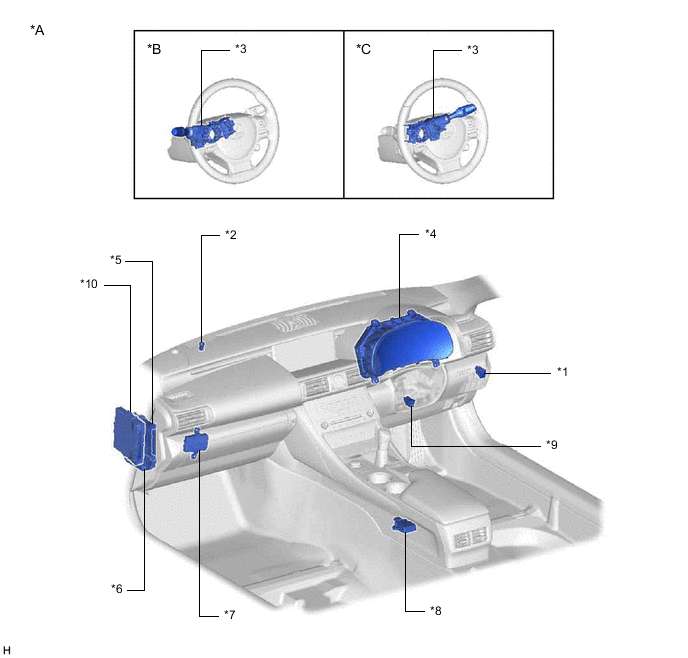

ILLUSTRATION
| *A | for RHD | *B | for Light Control Switch LH Side Type |
| *C | for Light Control Switch RH Side Type | - | - |
| *1 | AUTOMATIC HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
| *7 | NETWORK GATEWAY ECU | *8 | YAW RATE SENSOR |
| *9 | DLC3 | *10 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
