COMBINATION METER COMPONENTS
ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER LH | - | - |

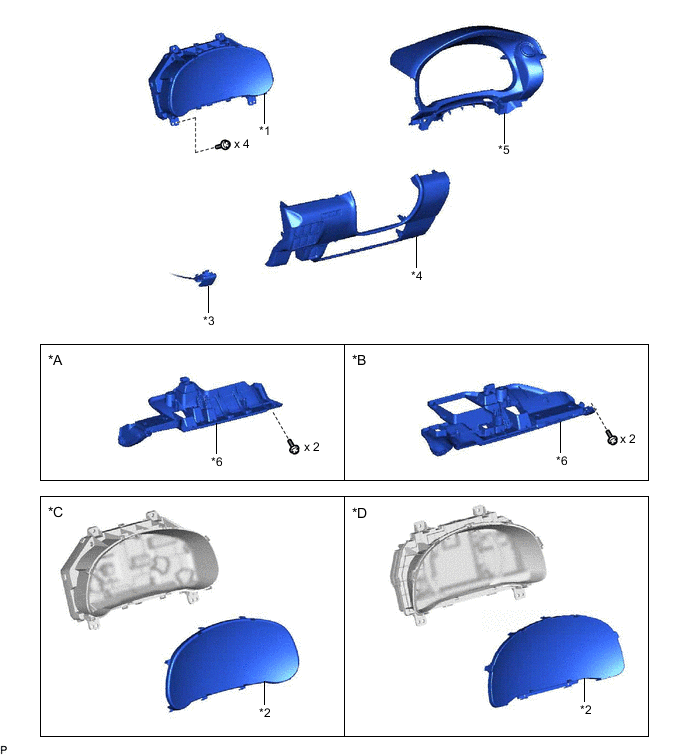

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | for Optitron Meter Type | *D | for TFT Meter Type |
| *1 | COMBINATION METER ASSEMBLY | *2 | COMBINATION METER GLASS |
| *3 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *4 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *5 | METER HOOD SUB-ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
