METER / GAUGE SYSTEM PARTS LOCATION

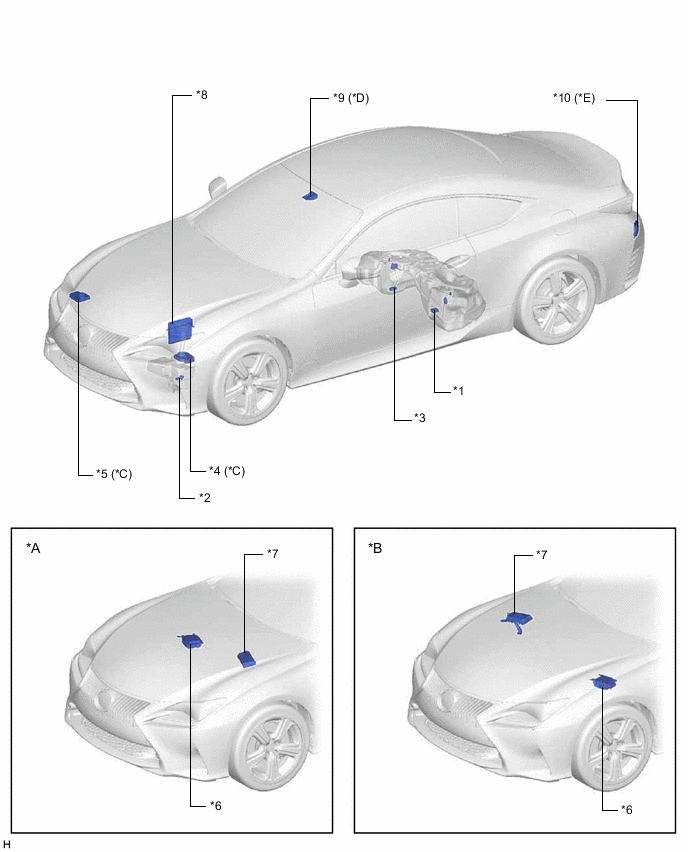

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | for Triple Beam Headlight | *D | w/ Forward Recognition Camera |
| *E | w/ Blind Spot Monitor System | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *4 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *5 | HEADLIGHT ECU SUB-ASSEMBLY RH | *6 | POWER STEERING ECU ASSEMBLY |
| *7 | SKID CONTROL ECU ASSEMBLY | *8 | ECM |
| *9 | FORWARD RECOGNITION CAMERA | *10 | BLIND SPOT MONITOR SENSOR LH |

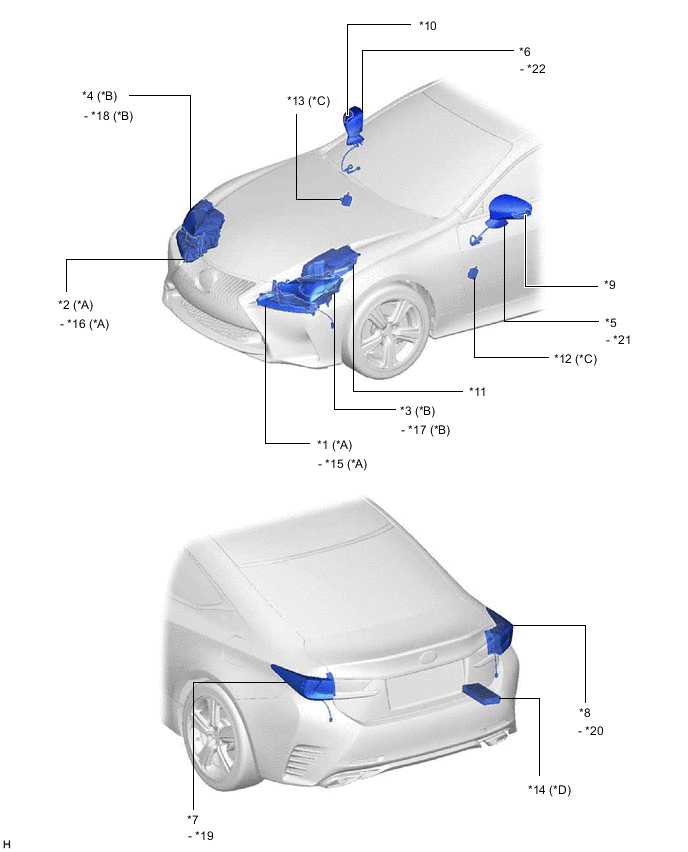

ILLUSTRATION
| *A | for Triple Beam Headlight | *B | for Single Beam Headlight |
| *C | w/ Seat Position Memory System | *D | for 10.3 Inch Multi-display or 7 Inch Multi-display (10 Speaker Type) |
| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | HEADLIGHT ASSEMBLY LH | *4 | HEADLIGHT ASSEMBLY RH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY LH | *8 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *9 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *10 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *11 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B FUSENO. 1 |
*12 | OUTER MIRROR CONTROL ECU ASSEMBLY LH |
| *13 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *14 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *15 | CLEARANCE LIGHT LED UNIT ASSEMBLY LH | *16 | CLEARANCE LIGHT LED UNIT ASSEMBLY RH |
| *17 | HEADLIGHT CORD LH | *18 | HEADLIGHT CORD RH |
| *19 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH | *20 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *21 | OUTER MIRROR ACTUATOR ASSEMBLY LH | *22 | OUTER MIRROR ACTUATOR ASSEMBLY RH |

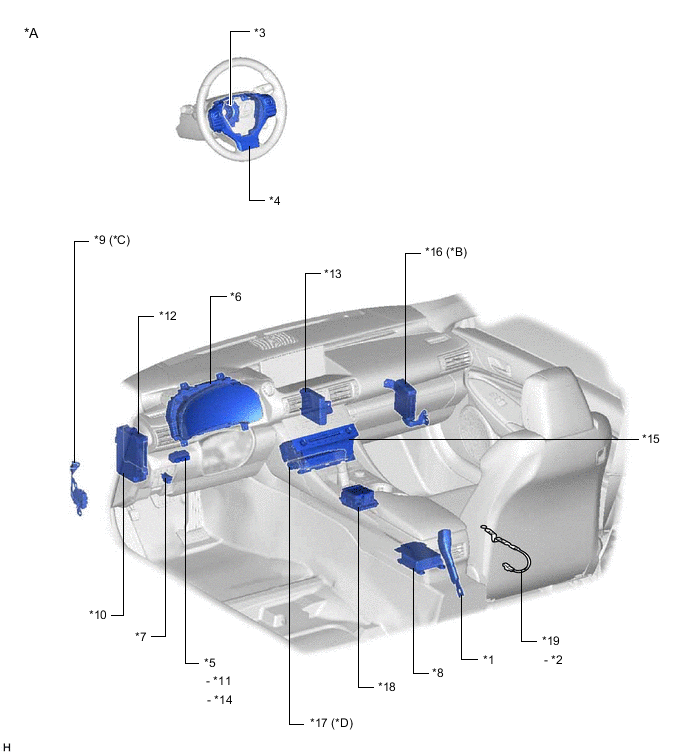

ILLUSTRATION
| *A | for LHD | *B | w/ Adaptive Variable Suspension System |
| *C | for Single Beam Headlight | *D | w/ Navigation System or Audio and Visual System (for 10.3 Inch Display) |
| *1 | FRONT SEAT INNER BELT ASSEMBLY RH | *2 | OCCUPANT DETECTION SENSOR |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | TRIP SWITCH | *6 | COMBINATION METER ASSEMBLY |
| *7 | DLC3 | *8 | AIRBAG ECU ASSEMBLY |
| *9 | HEADLIGHT LEVELING ECU ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE |
| *11 | LIGHT CONTROL RHEOSTAT SWITCH | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *14 | ODO/TRIP SWITCH |
| *15 | RADIO RECEIVER ASSEMBLY | *16 | ABSORBER CONTROL ECU |
| *17 | NAVIGATION ECU | *18 | REMOTE TOUCH (REMOTE OPERATIONCONTROLLER ASSEMBLY) |
| *19 | SEPARATE TYPE FRONT SEAT CUSHION PAD RH | - | - |

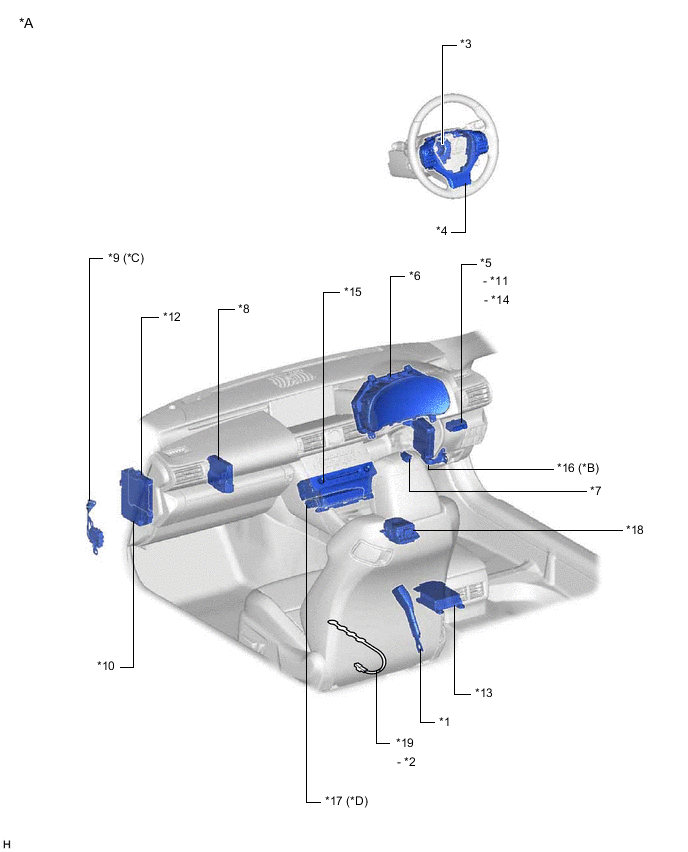

ILLUSTRATION
| *A | for RHD | *B | w/ Adaptive Variable Suspension System |
| *C | for Single Beam Headlight | *D | w/ Navigation System or Audio and Visual System (for 10.3 Inch Display) |
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | OCCUPANT DETECTION SENSOR |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | TRIP SWITCH | *6 | COMBINATION METER ASSEMBLY |
| *7 | DLC3 | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | HEADLIGHT LEVELING ECU ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - HAZ FUSE |
| *11 | LIGHT CONTROL RHEOSTAT SWITCH | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | AIRBAG ECU ASSEMBLY | *14 | ODO/TRIP SWITCH |
| *15 | RADIO RECEIVER ASSEMBLY | *16 | ABSORBER CONTROL ECU |
| *17 | NAVIGATION ECU | *18 | REMOTE TOUCH (REMOTE OPERATIONCONTROLLER ASSEMBLY) |
| *19 | SEPARATE TYPE FRONT SEAT CUSHION PAD LH | - | - |

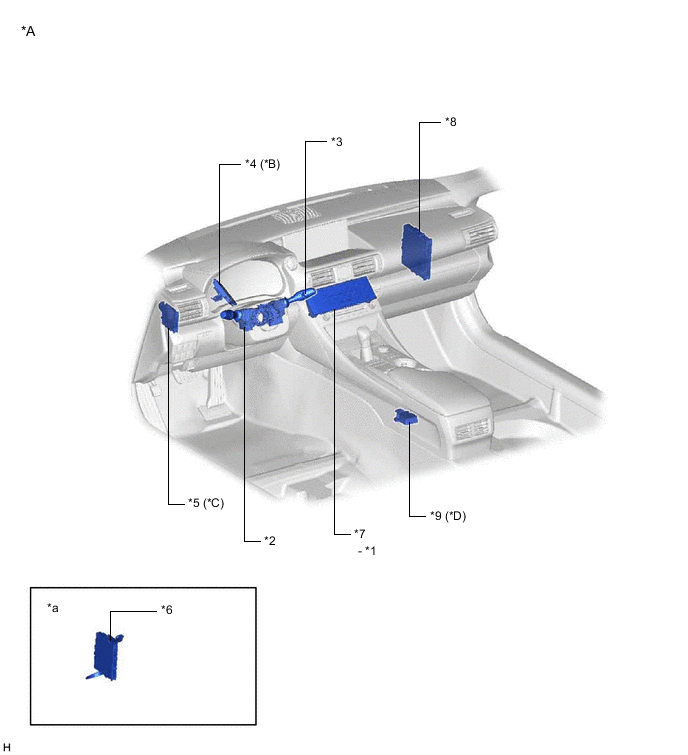

ILLUSTRATION
| *A | for LHD | *B | w/ Forward Recognition Camera |
| *C | w/ LEXUS Parking Assist-sensor System | *D | for TFT Meter Type |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY | *4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | CLEARANCE WARNING ECU ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | AIR CONDITIONING CONTROL ASSEMBLY | *8 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *9 | YAW RATE SENSOR | - | - |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |

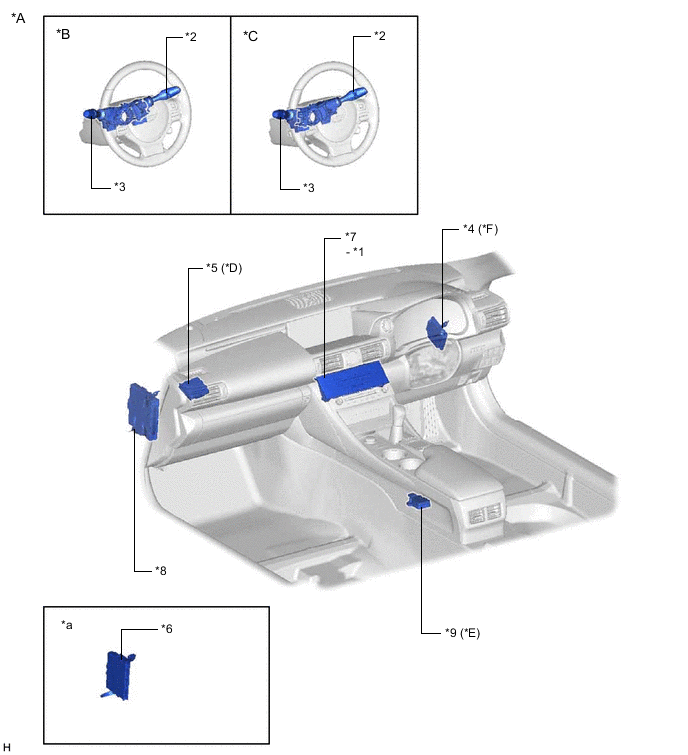

ILLUSTRATION
| *A | for RHD | *B | for Front Wiper Switch LH Side Type |
| *C | for Front Wiper Switch RH Side Type | *D | w/ LEXUS Parking Assist-sensor System |
| *E | for TFT Meter Type | *F | w/ Forward Recognition Camera |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY | *4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | CLEARANCE WARNING ECU ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | AIR CONDITIONING CONTROL ASSEMBLY | *8 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *9 | YAW RATE SENSOR | - | - |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |
ILLUSTRATION
| *A | w/ Rear Seat Belt Warning | - | - |
| *1 | REAR SEAT INNER BELT ASSEMBLY | *2 | NO. 1 REAR SEAT INNER BELT ASSEMBLY LH |
ILLUSTRATION
| *1 | ENGINE OIL LEVEL SENSOR | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
