MILLIMETER WAVE RADAR SENSOR INSTALLATION

PROCEDURE

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY




   1.

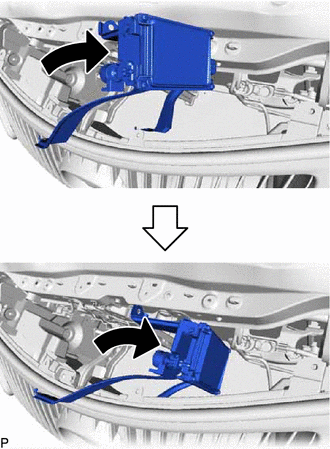

      Install the millimeter wave radar sensor assembly as shown in the illustration.

   2.

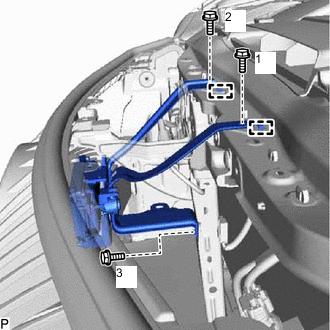

      Engage the 2 guides and install the millimeter wave radar sensor assembly with the 3 bolts.

      Torque:

      5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

      Tech Tips

      Tighten the bolts in the order shown in the illustration.

   3. Engage the clamp.

   4. Connect the connector.

2. INSTALL LOW PITCHED HORN ASSEMBLY

   Click here

3. INSTALL COOL AIR INTAKE DUCT SEAL

   Click here

4. INSTALL ENGINE ROOM SIDE COVER

   Click here

5. ADJUST MILLIMETER WAVE RADAR SENSOR

   Click here
