HOOD LOCK CONTROL CABLE ASSEMBLY COMPONENTS

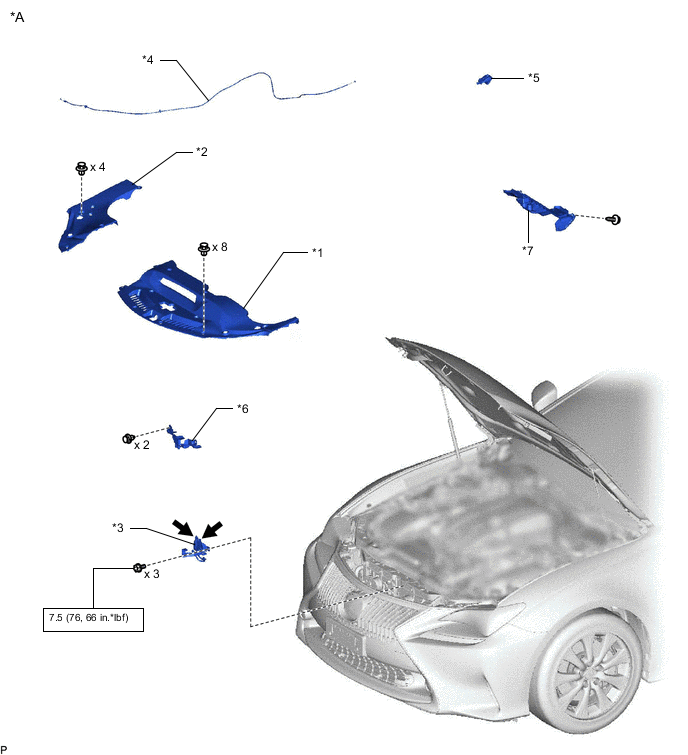

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE ROOM SIDE COVER |
| *3 | HOOD LOCK ASSEMBLY | *4 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *5 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *6 | HOOD LOCK RELEASE LEVER PROTECTOR |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
MP grease |

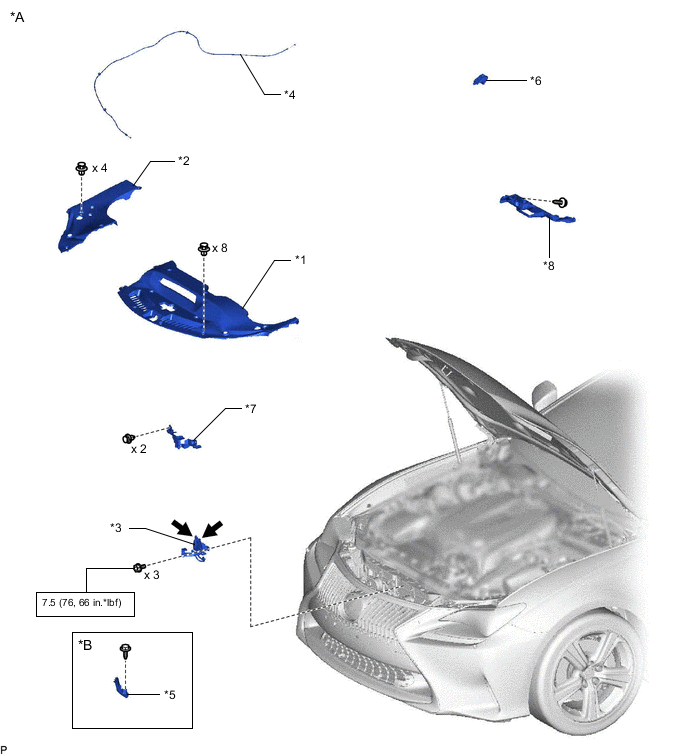

ILLUSTRATION
| *A | for RHD | *B | w/ Cover |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE ROOM SIDE COVER |
| *3 | HOOD LOCK ASSEMBLY | *4 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *5 | HOOD LOCK CONTROL CABLE COVER | *6 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *7 | HOOD LOCK RELEASE LEVER PROTECTOR | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | |
MP grease |
