REAR SPOILER REMOVAL

PROCEDURE


  1. REMOVE BACK WINDOW UPPER PANEL TRIM

    Click here

  2. REMOVE REAR SPOILER SUB-ASSEMBLY

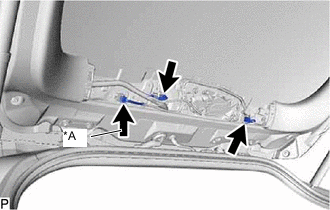

    1. B005NDAC01
      *A w/ Digital Audio Broadcasting Antenna

      Disconnect each connector.

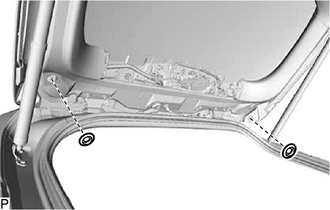

    2. B005LUQ

      Remove the 2 hole plugs.

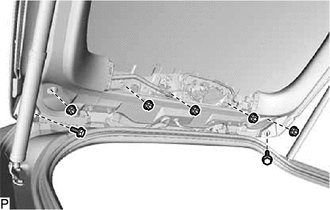

    3. B005NHS

      Remove the 2 bolts and 5 nuts.

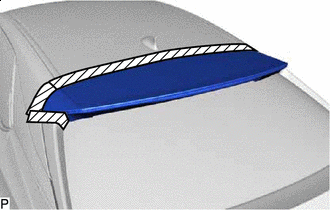

    4. B005OQ2C01
      B005M97 Protective Tape

      Apply protective tape around the rear spoiler sub-assembly.

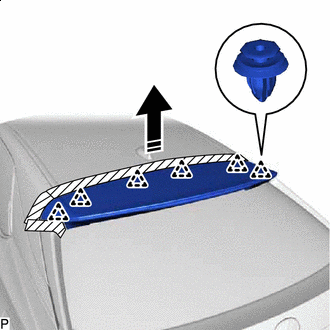

    5. B005N7PC01
      B005OOA Remove in this Direction

      Disengage the 6 clips as shown in the illustration to remove the rear spoiler sub-assembly.

  3. REMOVE SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY LH

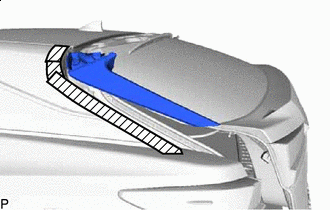

    1. B005MDMC01
      B005M97 Protective Tape

      Apply protective tape around the side rear spoiler protector sub-assembly LH.

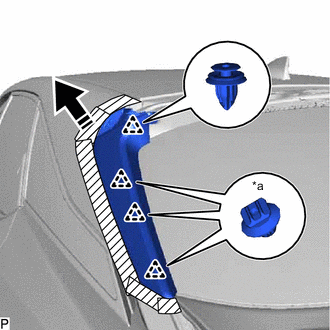

    2. B005OSIC01
      *a Clip <A>
      B005OOA Remove in this Direction

      Disengage the 4 clips as shown in the illustration to remove the side rear spoiler protector sub-assembly LH.

    3. Remove the 3 clips <A>.

  4. REMOVE SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.
