REAR SEAT OUTER BELT ASSEMBLY COMPONENTS

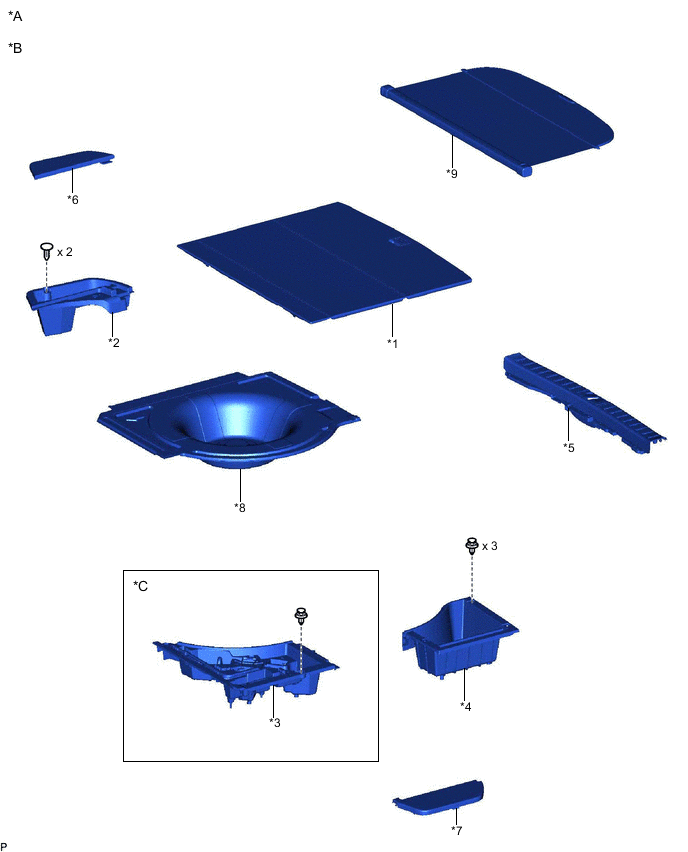

ILLUSTRATION
| *A | w/ Spare Tire | *B | for Compact Spare Tire |
| *C | for LH Side | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX RH |
| *3 | FRONT DECK FLOOR BOX | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | *6 | REAR NO. 3 FLOOR BOARD |
| *7 | REAR NO. 4 FLOOR BOARD | *8 | SPARE WHEEL COVER |
| *9 | TONNEAU COVER ASSEMBLY | - | - |

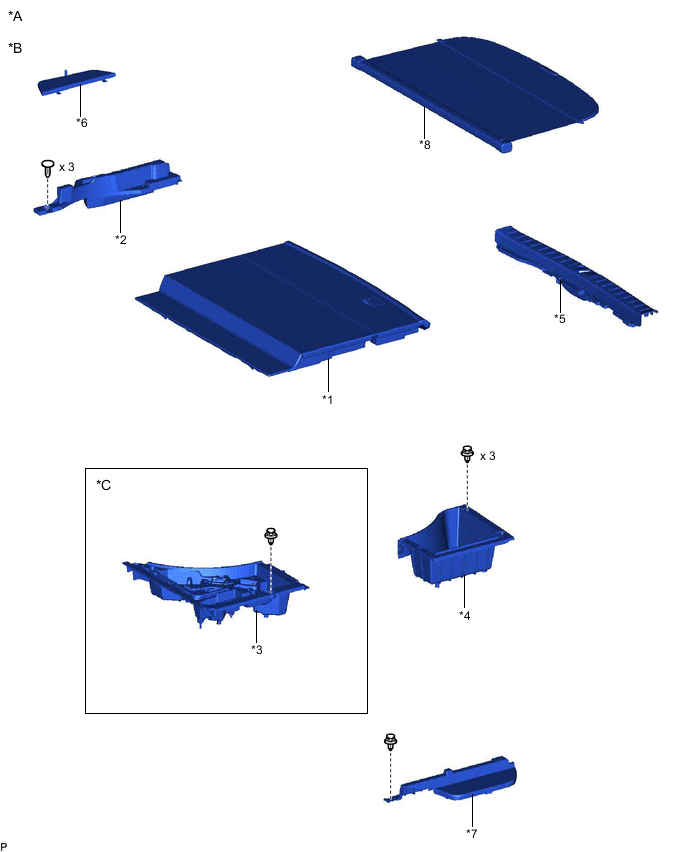

ILLUSTRATION
| *A | w/ Spare Tire | *B | for Full Size Spare Tire |
| *C | for LH Side | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX RH |
| *3 | FRONT DECK FLOOR BOX | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | *6 | REAR NO. 3 FLOOR BOARD |
| *7 | REAR NO. 4 FLOOR BOARD | *8 | TONNEAU COVER ASSEMBLY |

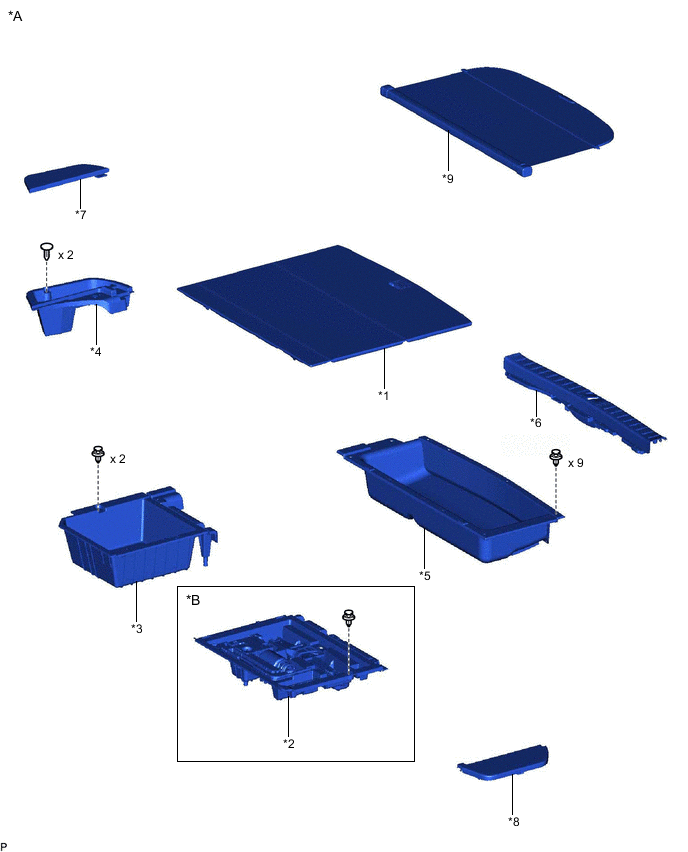

ILLUSTRATION
| *A | w/o Spare Tire | *B | for LH Side |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | DECK FLOOR BOX RH | *4 | DECK SIDE TRIM BOX RH |
| *5 | REAR FLOOR CARPET | *6 | REAR FLOOR FINISH PLATE |
| *7 | REAR NO. 3 FLOOR BOARD | *8 | REAR NO. 4 FLOOR BOARD |
| *9 | TONNEAU COVER ASSEMBLY | - | - |

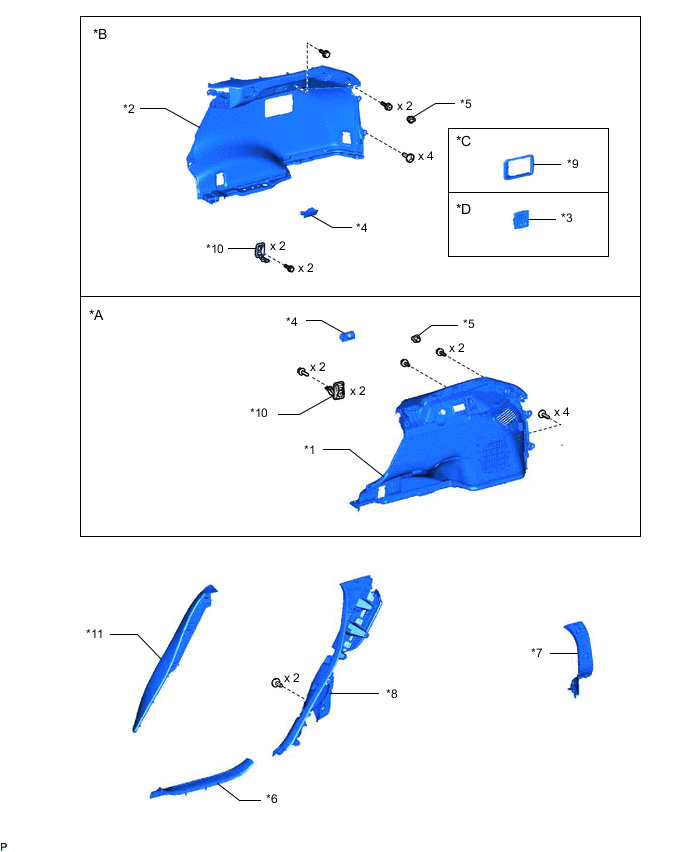

ILLUSTRATION
| *A | for LH Side | *B | for RH Side |
| *C | w/o Rear Power Seat System | *D | w/ Rear Power Seat System |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | DECK TRIM SIDE PANEL ASSEMBLY RH |
| *3 | FOLD SEAT SWITCH ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | REAR DOOR SCUFF PLATE |
| *7 | REAR FLOOR FINISH SIDE PLATE | *8 | REAR SEAT SIDE GARNISH |
| *9 | RECLINING REMOTE CONTROL BEZEL RH | *10 | ROPE HOOK ASSEMBLY |
| *11 | UPPER QUARTER TRIM PAD | - | - |

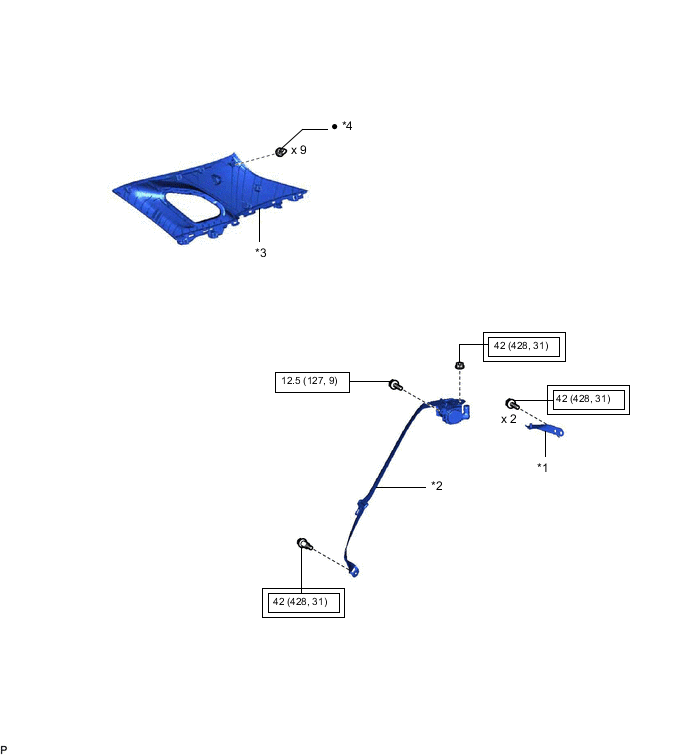

ILLUSTRATION
| *1 | OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY | *2 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY |
| *3 | ROOF SIDE INNER GARNISH ASSEMBLY | *4 | CLIP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
