FRONT SEATBACK HEATER INSPECTION

PROCEDURE


  1. INSPECT FRONT SEATBACK HEATER (SEPARATE TYPE FRONT SEATBACK COVER (for LH Side))

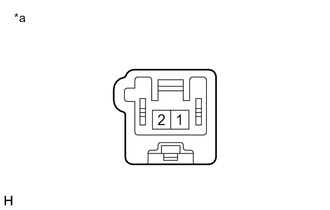

    1. A01RC83C01
      *a

      Component without harness connected

      (Front Seatback Heater (Separate Type Front Seatback Cover (for LH Side)))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Seat heatertemperature 20 °C (68 °F) 1.89 to 2.27 Ω

      If the result is not as specified, replace the front seatback heater (separate type front seatback cover (for LH side)).

  2. INSPECT FRONT SEATBACK HEATER (SEPARATE TYPE FRONT SEATBACK COVER (for RH Side))


    1. A01RC83C01
      *a

      Component without harness connected

      (Front Seatback Heater (Separate Type Front Seatback Cover (for RH Side)))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Seat heatertemperature 20 °C (68 °F) 1.89 to 2.27 Ω

      If the result is not as specified, replace the front seatback heater (separate type front seatback cover (for RH side)).

  3. INSPECT FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER LH)


    1. A01RCP8C02
      *a

      Component without harness connected

      Front Seatback Heater (Front Seatback Pad with Cover LH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Seat heatertemperature 23 °C (73 °F) 2.36 to 2.90 Ω

      If the result is not as specified, replace the front seatback heater (front seatback pad with cover LH).

  4. INSPECT FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER RH)

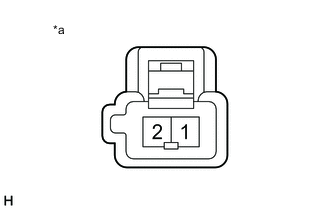

    1. A01RCP8C03
      *a

      Component without harness connected

      Front Seatback Heater (Front Seatback Pad with Cover RH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Seat heatertemperature 23 °C (73 °F) 2.36 to 2.90 Ω

      If the result is not as specified, replace the front seatback heater (front seatback pad with cover RH).
