REAR POWER SEAT CONTROL SYSTEM(for Second Row) PARTS LOCATION
ILLUSTRATION

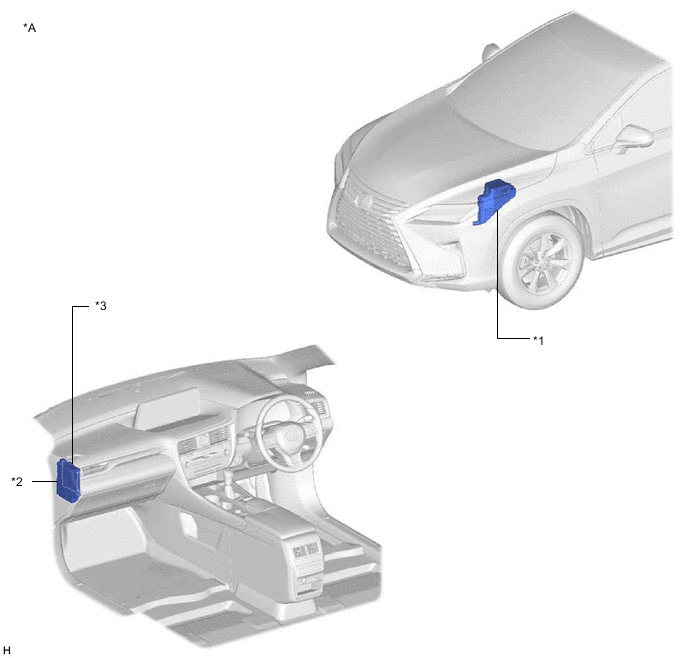

| *A | for LHD | - | - |
| *1 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/SEAT R/R FUSE - P/SEAT R/L FUSE |
*2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/SEAT R/R FUSE - P/SEAT R/L FUSE |
*2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |

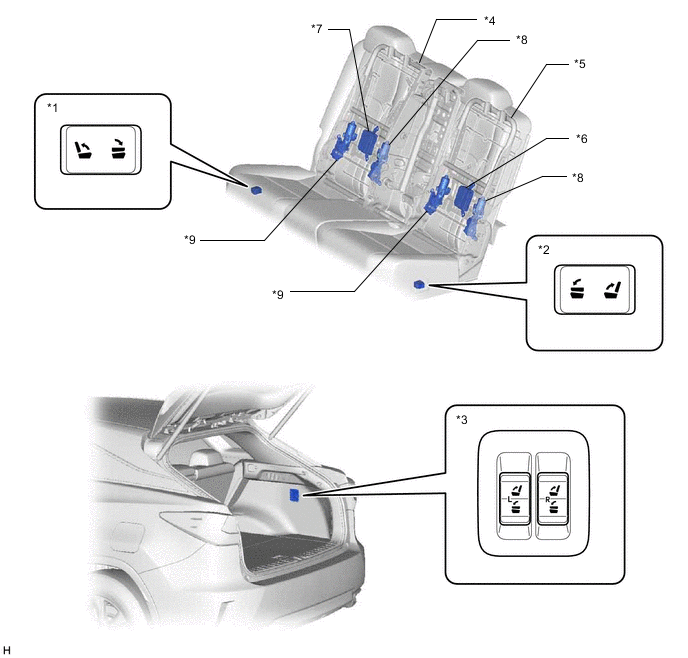

ILLUSTRATION
| *1 | REAR POWER SEAT SWITCH RH | *2 | REAR POWER SEAT SWITCH LH |
| *3 | FOLD SEAT SWITCH ASSEMBLY | *4 | REAR SEATBACK FRAME SUB-ASSEMBLY RH |
| *5 | REAR SEATBACK FRAME SUB-ASSEMBLY LH | *6 | FOLD SEAT CONTROL ECU (REAR LH SEAT) |
| *7 | FOLD SEAT CONTROL ECU (REAR RH SEAT) | *8 | FOLD MOTOR |
| *9 | REAR RECLINING MOTOR | - | - |

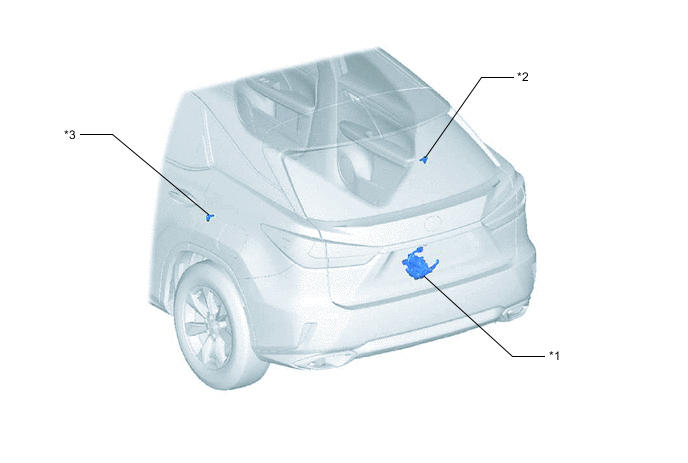

ILLUSTRATION
| *1 | BACK DOOR LOCK ASSEMBLY (BACK DOOR COURTESY LIGHT SWITCH) | *2 | REAR DOOR COURTESY LIGHT SWITCH (for RH) |
| *3 | REAR DOOR COURTESY LIGHT SWITCH (for LH) | - | - |
