HEADUP DISPLAY SWITCH INSPECTION

PROCEDURE


  1. INSPECT HEADUP DISPLAY SWITCH ASSEMBLY (INTEGRATION CONTROL AND PANEL ASSEMBLY)

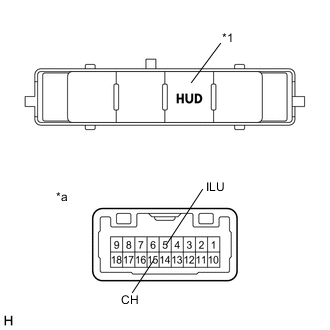

    1. A01RAJTC01
      *1 Headup Display Switch
      *a

      Component without harness connected

      (Headup Display Switch Assembly (Integration Control and Panel Assembly))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      5 (ILU) - 15 (CH) Headup display switch pressed Below 50 Ω
      Headup display switch not pressed 10 kΩ or higher

      If the result is not as specified, replace the integration control and panel assembly.

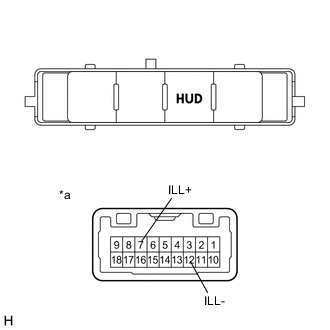

    2. A01RAJTC02
      *a

      Component without harness connected

      (Headup Display Switch Assembly (Integration Control and Panel Assembly))

      Illumination Inspection


      1. Apply battery voltage to the integration control and panel assembly and check that it illuminates.

        OK
        Condition Specified Condition

        Battery positive (+) → Terminal 7 (ILL+)

        Battery negative (-) → Terminal 12 (ILL-)

        		 Illuminates

        If the result is not as specified, replace the integration control and panel assembly.
