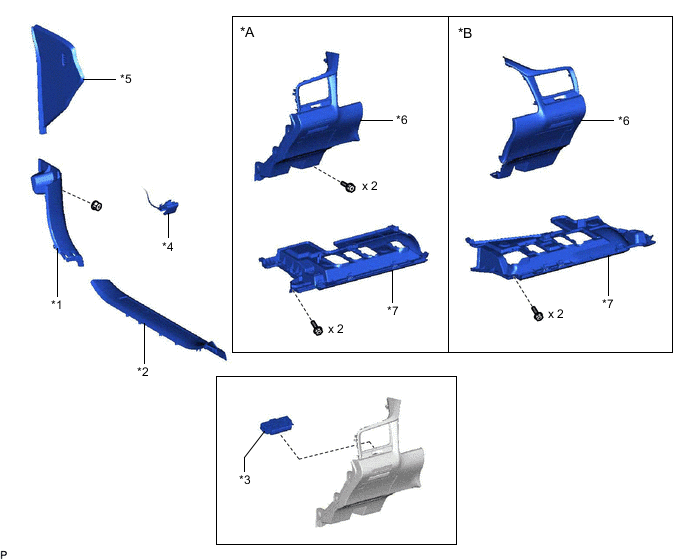

HEADUP DISPLAY SWITCH COMPONENTS
ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | COWL SIDE TRIM BOARD | *2 | FRONT DOOR SCUFF PLATE |
| *3 | HEADUP DISPLAY SWITCH ASSEMBLY (INTEGRATION CONTROL AND PANEL ASSEMBLY) | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT PANEL GARNISH | *6 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
