METER / GAUGE SYSTEM PARTS LOCATION

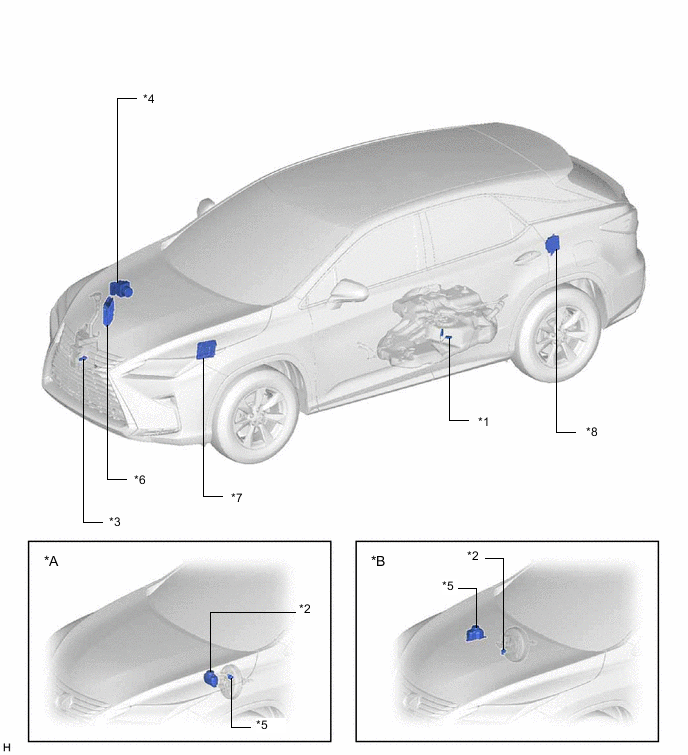

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY (for 2GR-FKS) |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*6 | ECM (for 2GR-FKS) |
| *7 | ECM (for 8AR-FTS) | *8 | ABSORBER CONTROL ECU (w/ Adaptive Variable Suspension System) |

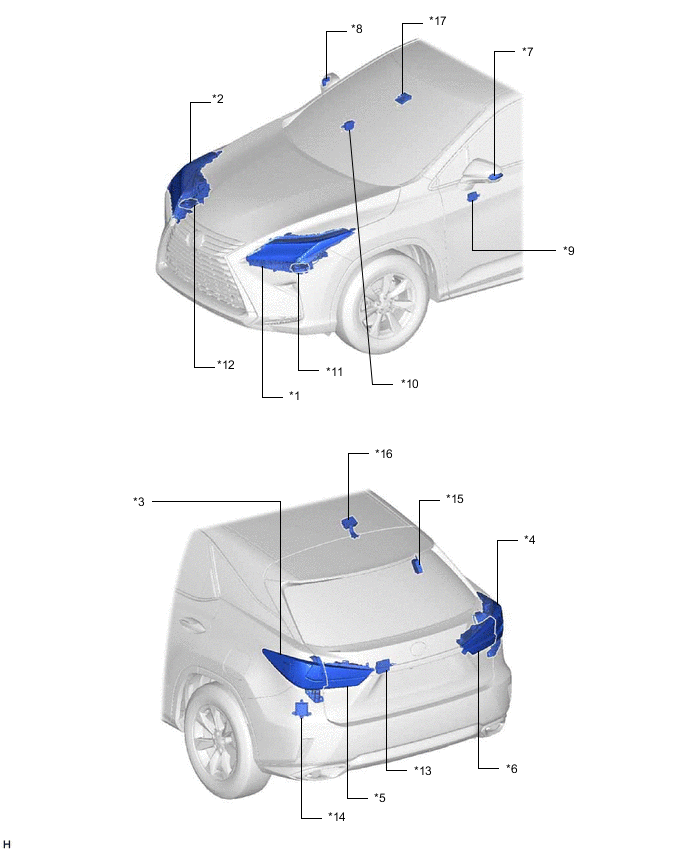

ILLUSTRATION
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | REAR LIGHT ASSEMBLY LH | *6 | REAR LIGHT ASSEMBLY RH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *11 | HEADLIGHT ECU SUB-ASSEMBLY LH | *12 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *13 | MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System) | *14 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
| *15 | TIRE PRESSURE WARNING ECU AND RECEIVER (for Quarter Type) | *16 | TIRE PRESSURE WARNING ECU AND RECEIVER (for Roof Type) |
| *17 | FORWARD RECOGNITION CAMERA (w/ Pre-crash Safety System) | - | - |

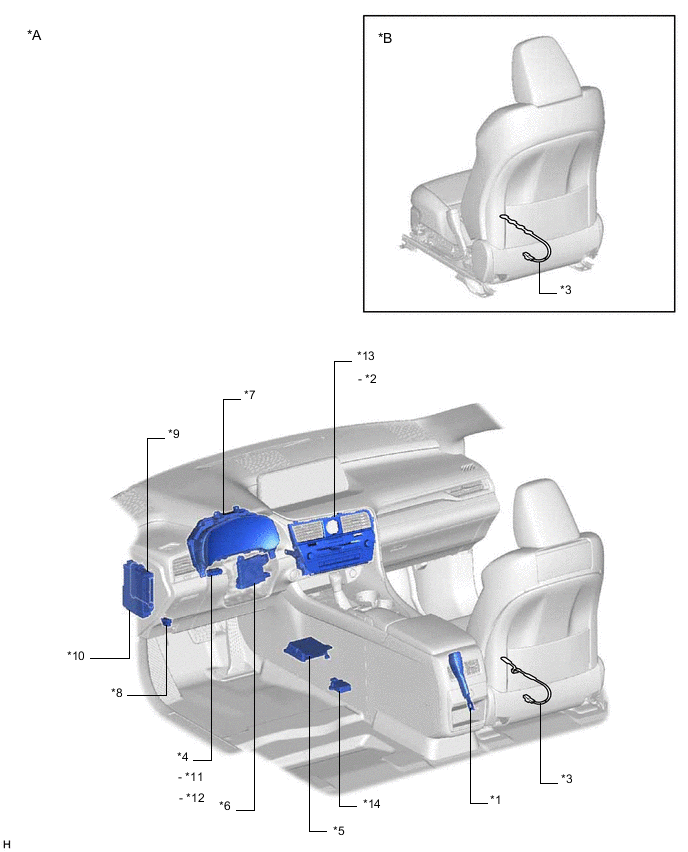

ILLUSTRATION
| *A | for LHD | *B | for Sports Seat Type |
| *1 | FRONT SEAT INNER BELT ASSEMBLY RH | *2 | HAZARD WARNING SIGNAL SWITCH |
| *3 | OCCUPANT DETECTION SENSOR | *4 | TRIP SWITCH |
| *5 | AIRBAG SENSOR ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - METER-IG2 FUSE - HAZ FUSE |
| *11 | LIGHT CONTROL RHEOSTAT SWITCH | *12 | ODO/TRIP SWITCH |
| *13 | RADIO RECEIVER ASSEMBLY | *14 | YAW RATE SENSOR ASSEMBLY (for TFT Meter Type) |

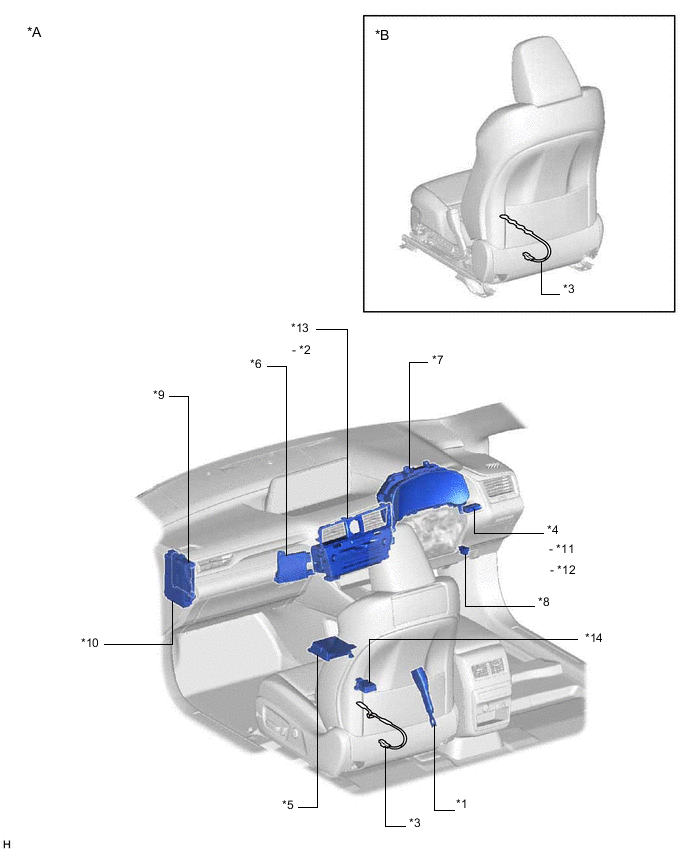

ILLUSTRATION
| *A | for RHD | *B | for Sports Seat Type |
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | HAZARD WARNING SIGNAL SWITCH |
| *3 | OCCUPANT DETECTION SENSOR | *4 | TRIP SWITCH |
| *5 | AIRBAG SENSOR ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - METER-IG2 FUSE - HAZ FUSE |
| *11 | LIGHT CONTROL RHEOSTAT SWITCH | *12 | ODO/TRIP SWITCH |
| *13 | RADIO RECEIVER ASSEMBLY | *14 | YAW RATE SENSOR ASSEMBLY (for TFT Meter Type) |

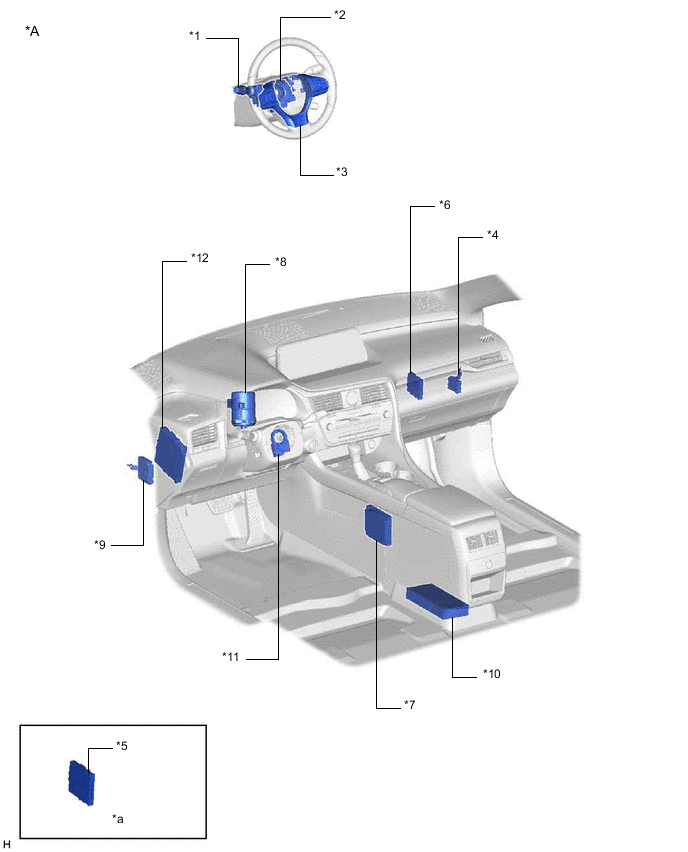

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | 4WD ECU ASSEMBLY (for AWD) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) |
| *7 | TELEMATICS TRANSCEIVER (w/ Manual (SOS) Switch) | *8 | POWER STEERING ECU ASSEMBLY |
| *9 | DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-crash Safety System) | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *11 | STEERING SENSOR (for TFT Meter Type) | *12 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |

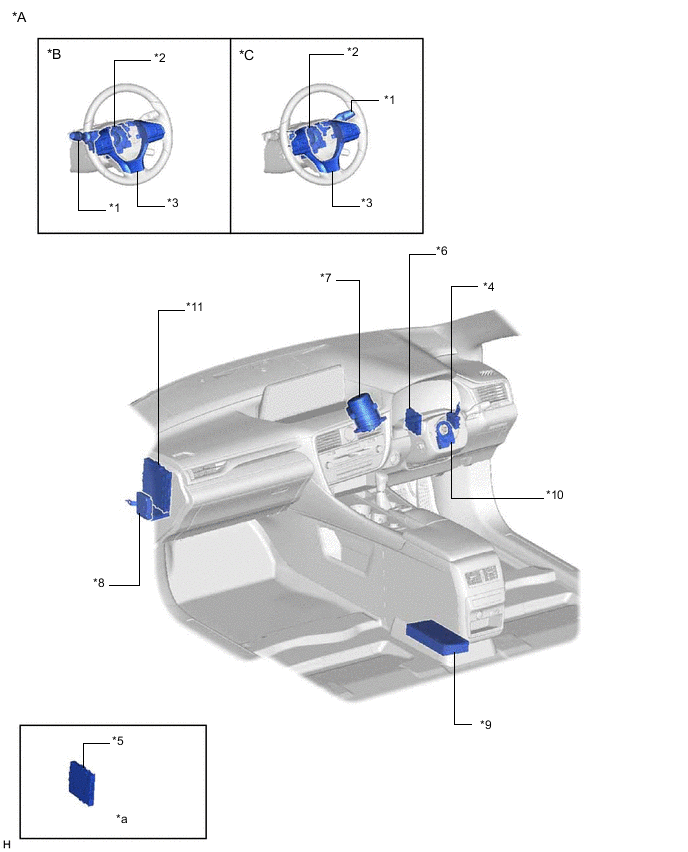

ILLUSTRATION
| *A | for RHD | *B | for Light Control Switch LH Side Type |
| *C | for Light Control Switch RH Side Type | - | - |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | 4WD ECU ASSEMBLY (for AWD) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) |
| *7 | POWER STEERING ECU ASSEMBLY | *8 | DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-crash Safety System) |
| *9 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *10 | STEERING SENSOR (for TFT Meter Type) |
| *11 | ENGINE STOP AND START ECU (w/ Stop and Start System) | - | - |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |

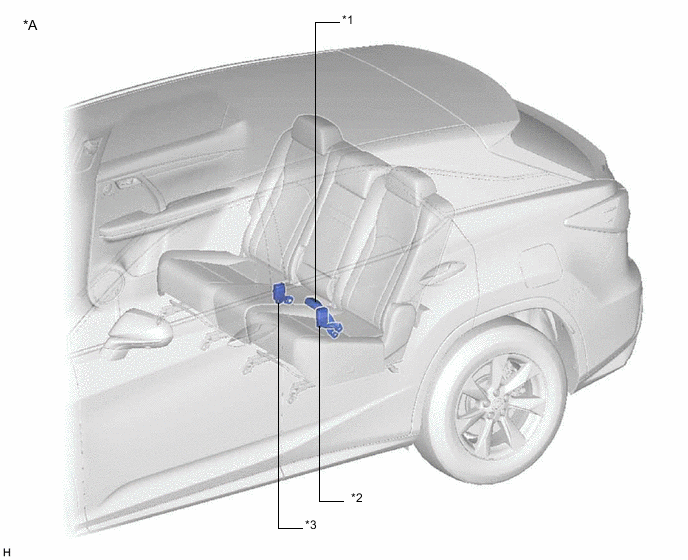

ILLUSTRATION
| *A | w/ Rear Seat Belt Warning | - | - |
| *1 | REAR CENTER SEAT INNER BELT ASSEMBLY | *2 | REAR SEAT INNER BELT ASSEMBLY LH |
| *3 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH | - | - |

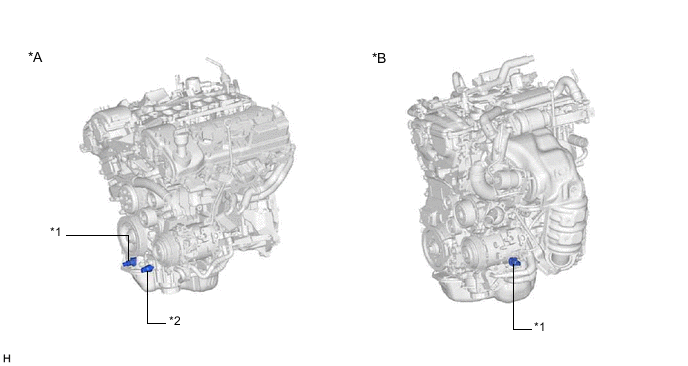

ILLUSTRATION
| *A | for 2GR-FKS | *B | for 8AR-FTS |
| *1 | ENGINE OIL LEVEL SENSOR | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
