LUGGAGE COMPARTMENT ROOM LIGHT REMOVAL

PROCEDURE


  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)


    1. w/o Rear No. 2 Seat:

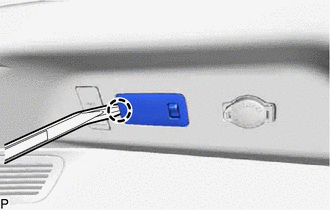

      1. B005LDK

        Using a moulding remover, disengage the claw.

    2. w/ Rear No. 2 Seat:

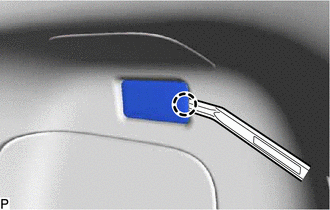

      1. B005N2N

        Using a moulding remover, disengage the claw.

    3. Disconnect the connector to remove the No. 1 luggage compartment light assembly.

  2. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)


    1. w/o Rear No. 2 Seat:

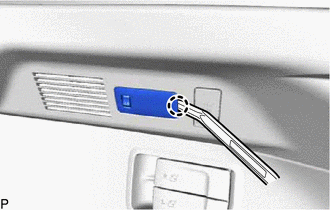

      1. B005POQ

        Using a moulding remover, disengage the claw.

    2. w/ Rear No. 2 Seat:

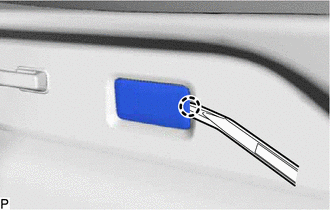

      1. B005LOC

        Using a moulding remover, disengage the claw.

    3. Disconnect the connector to remove the No. 1 luggage compartment light assembly.

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for Back Door)


    1. w/o Rear No. 2 Seat:

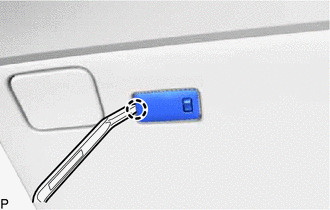

      1. B005QGT

        Using a moulding remover, disengage the claw.

    2. w/ Rear No. 2 Seat:

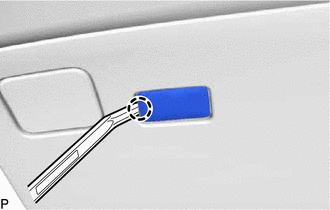

      1. B005O2T

        Using a moulding remover, disengage the claw.

    3. Disconnect the connector to remove the No. 1 luggage compartment light assembly.

  4. REMOVE LUGGAGE COMPARTMENT LIGHT BULB (for Bulb Type)

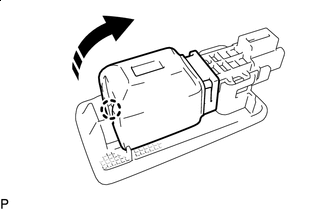

    1. B005LRGC01
      B005OOA Remove in this Direction

      Disengage the claw as shown in the illustration.

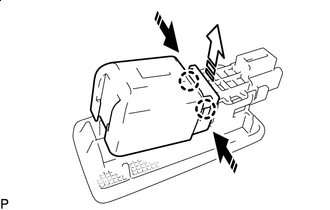

    2. B005M2NC01
      B005OOA Remove in this Direction (1)
      B005OMH Remove in this Direction (2)

      Disengage the 2 claws and remove the shade from the No. 1 luggage compartment light lens as indicated by the arrows, in the order as shown in the illustration.

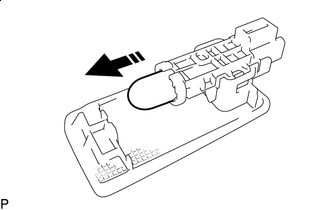

    3. B005NPIC01
      B005OOA Remove in this Direction

      Remove the luggage compartment light bulb from the No. 1 luggage compartment light lens as shown in the illustration.
