DOOR CONTROL BATTERY REMOVAL

PROCEDURE

1. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

   for U661E Automatic Transmission / Transaxle:

   Click here

   for U661F Automatic Transmission / Transaxle:

   Click here

   for U881E Automatic Transmission / Transaxle:

   Click here

   for U881F Automatic Transmission / Transaxle:

   Click here

2. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

   Click here

3. REMOVE TELEMATICS TRANSCEIVER WITH BRACKET (w/ Telematics Transceiver)

   Click here

4. REMOVE NO. 3 CONSOLE BOX MOUNTING BRACKET

   Click here

5. REMOVE SHIFT AND SELECT LEVER SUPPORT

   Click here

6. REMOVE NO. 1 CONSOLE BOX DUCT

   Click here

7. REMOVE DOOR CONTROL BATTERY




   1.

      Disconnect the connector.

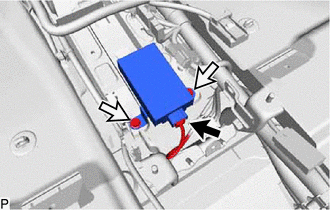

   2. Remove the 2 bolts and door control battery.
