POWER DOOR LOCK CONTROL SYSTEM PARTS LOCATION

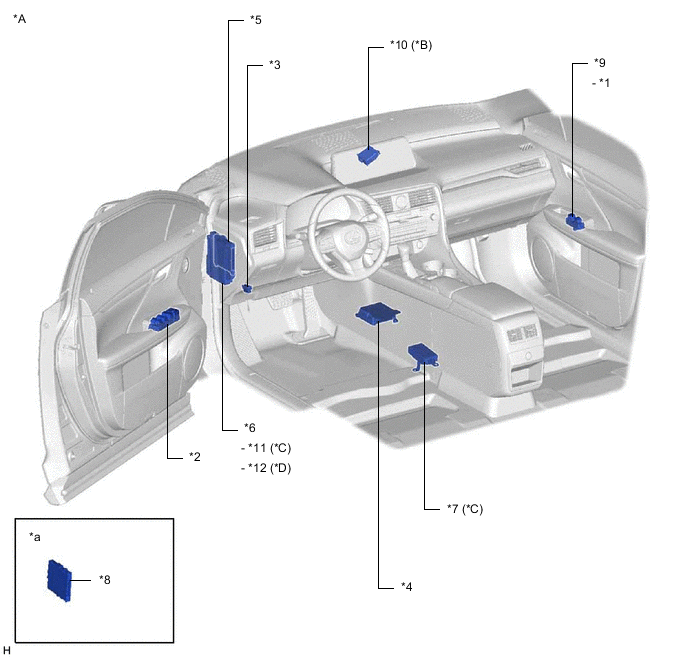

ILLUSTRATION
| *A | for LHD | *B | w/ Double Locking System |
| *C | w/o Canister Pump Module with Door Ajar Warning Buzzer Function | *D | w/o Power Back Door System |
| *1 | DOOR CONTROL SWITCH | *2 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - AM2 FUSE - D/L FUSE - ALL DR LOCK RELAY - D DR UNLOCK RELAY - L/D DR UNLOCK RELAY |
| *7 | DOOR CONTROL BATTERY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | POWER WINDOW REGULATOR SWITCH ASSEMBLY | *10 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY |
| *11 | ECU-IG1 NO. 1 FUSE | *12 | DOOR BACK RELAY |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
ILLUSTRATION
| *A | for RHD | *B | w/ Double Locking System |
| *C | w/o Power Back Door System | - | - |
| *1 | DOOR CONTROL SWITCH | *2 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - D/L FUSE - ECU-DCC NO. 2 FUSE - ECU-ACC FUSE - ECU-IG1 NO. 1 FUSE - ECU-IG1 NO. 4 FUSE - AM2 FUSE - ALL DR LOCK RELAY - D DR UNLOCK RELAY - L/D DR UNLOCK RELAY |
| *7 | DOOR CONTROL BATTERY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | POWER WINDOW REGULATOR SWITCH ASSEMBLY | *10 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY |
| *11 | DOOR BACK RELAY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

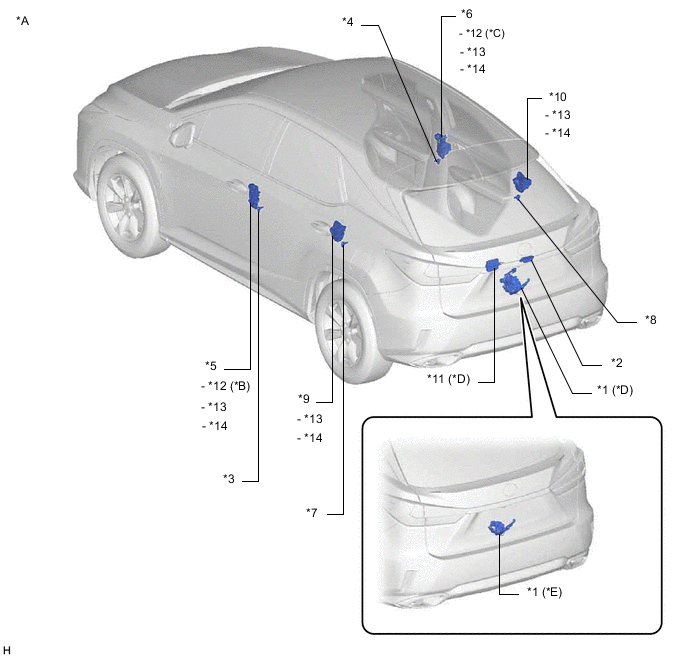

ILLUSTRATION
| *A | w/o Double Locking System | *B | for LHD |
| *C | for RHD | *D | w/ Power Back Door System |
| *E | w/o Power Back Door System | - | - |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR OPENER SWITCH ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | REAR DOOR LOCK ASSEMBLY RH |
| *11 | MULTIPLEX NETWORK DOOR ECU | *12 | DOOR KEY LOCK AND UNLOCK SWITCH |
| *13 | DOOR LOCK MOTOR | *14 | DOOR UNLOCK DETECTION SWITCH |

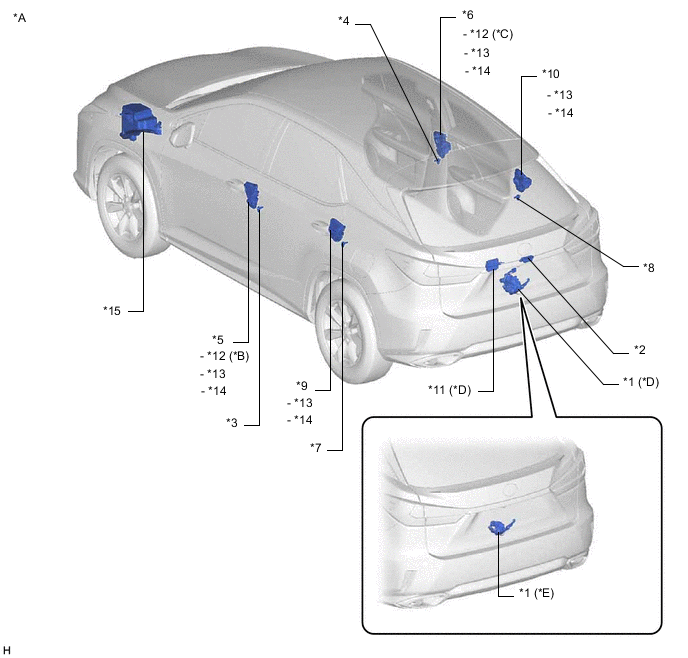

ILLUSTRATION
| *A | w/ Double Locking System | *B | for LHD |
| *C | for RHD | *D | w/o Double Locking System |
| *E | w/o Power Back Door System | - | - |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR OPENER SWITCH ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | REAR DOOR LOCK ASSEMBLY RH |
| *11 | MULTIPLEX NETWORK DOOR ECU | *12 | DOOR KEY LOCK AND UNLOCK SWITCH |
| *13 | DOOR LOCK MOTOR | *14 | DOOR UNLOCK DETECTION SWITCH |
| *15 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - DOOR-DL FUSE |
- | - |
