CHARGING SYSTEM PARTS LOCATION

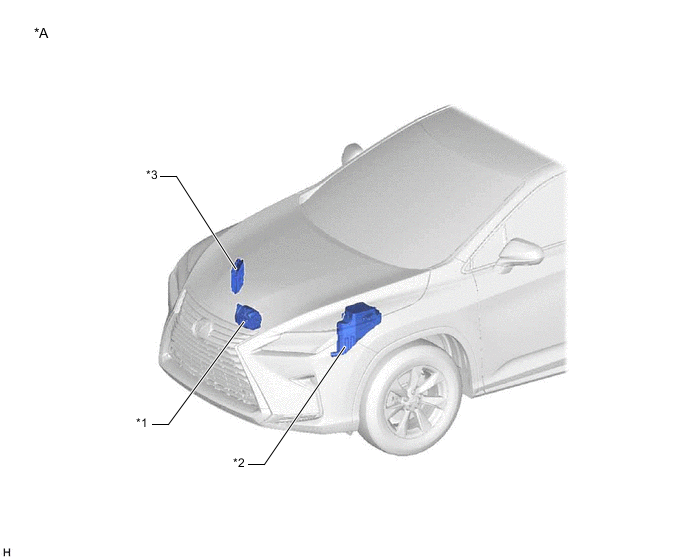

ILLUSTRATION

B005PUYC01

*A

for 150 A Type

-

-

*1

GENERATOR ASSEMBLY

*2

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- EFI-MAIN FUSE

- ALT FUSE

*3

ECM

-

-

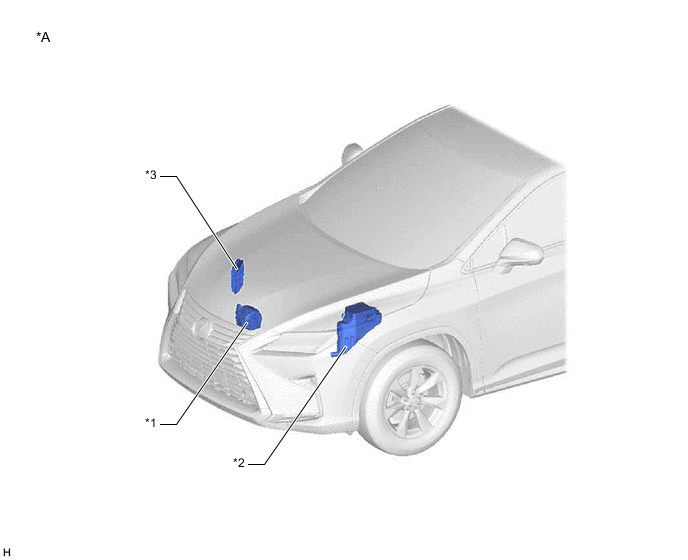

ILLUSTRATION

B005Q0EC01

*A

for 180 A Type

-

-

*1

GENERATOR ASSEMBLY

*2

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- EFI-MAIN FUSE

- ALT FUSE

*3

ECM

-

-

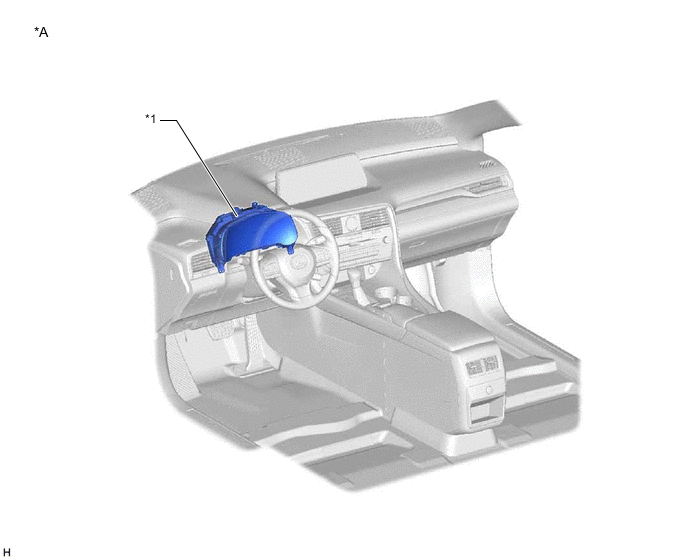

ILLUSTRATION

B005LFQC02

*A	for LHD	-	-
*1	COMBINATION METER ASSEMBLY	-	-

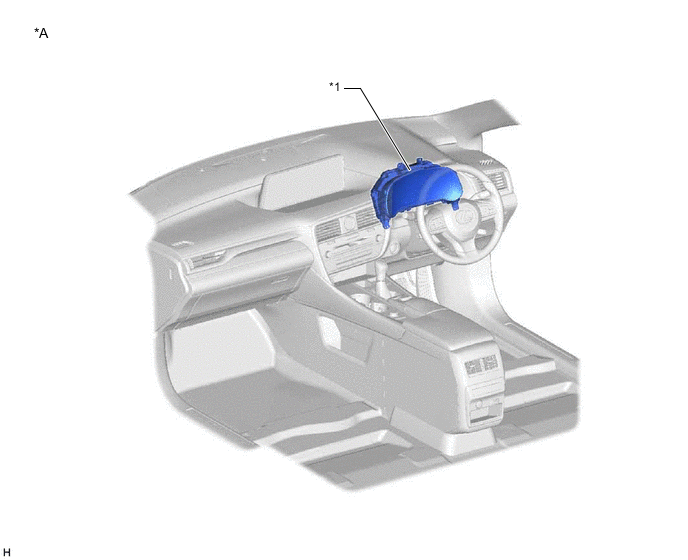

ILLUSTRATION

B005P2TC01

*A	for RHD	-	-
*1	COMBINATION METER ASSEMBLY	-	-
