CHARGING SYSTEM PARTS LOCATION
ILLUSTRATION

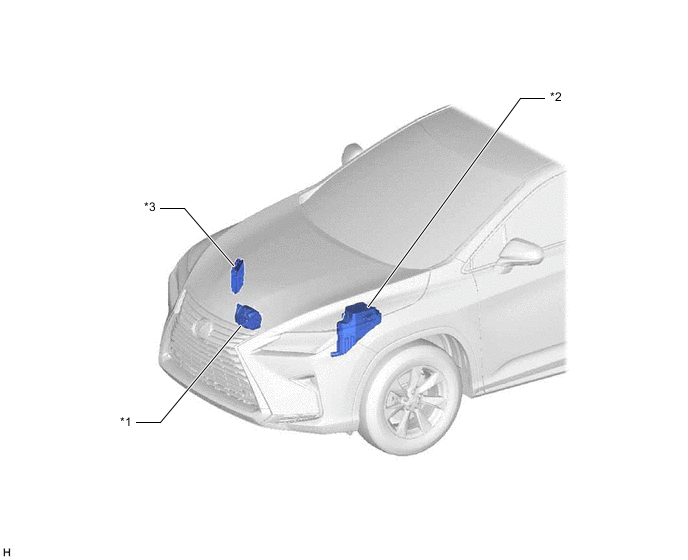

| *1 | GENERATOR ASSEMBLY | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN FUSE - ALT FUSE |
| *3 | ECM | - | - |
ILLUSTRATION

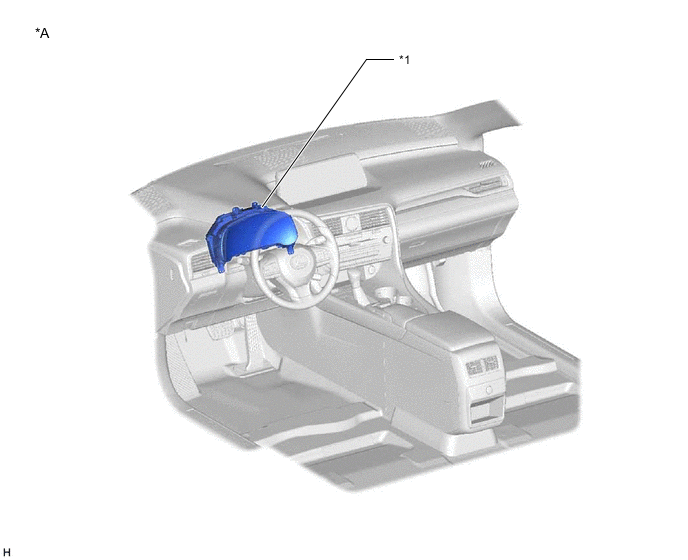

| *A | for LHD | - | - |
| *1 | COMBINATION METER ASSEMBLY | - | - |
ILLUSTRATION

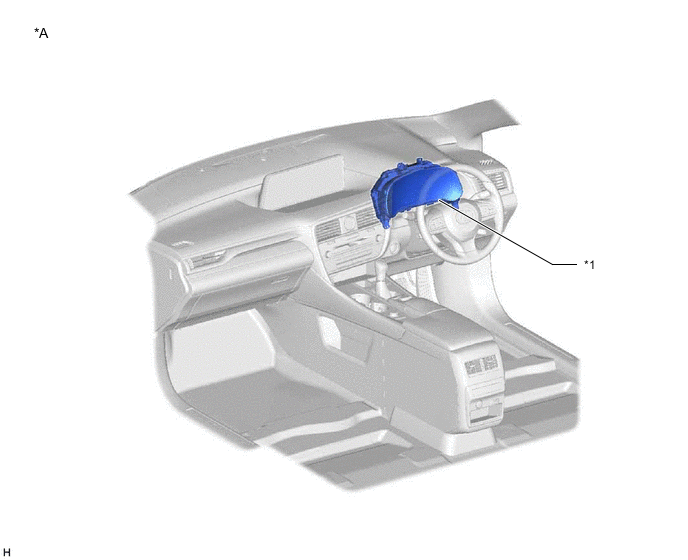

| *A | for RHD | - | - |
| *1 | COMBINATION METER ASSEMBLY | - | - |
