FRONT CONSOLE BOX COMPONENTS

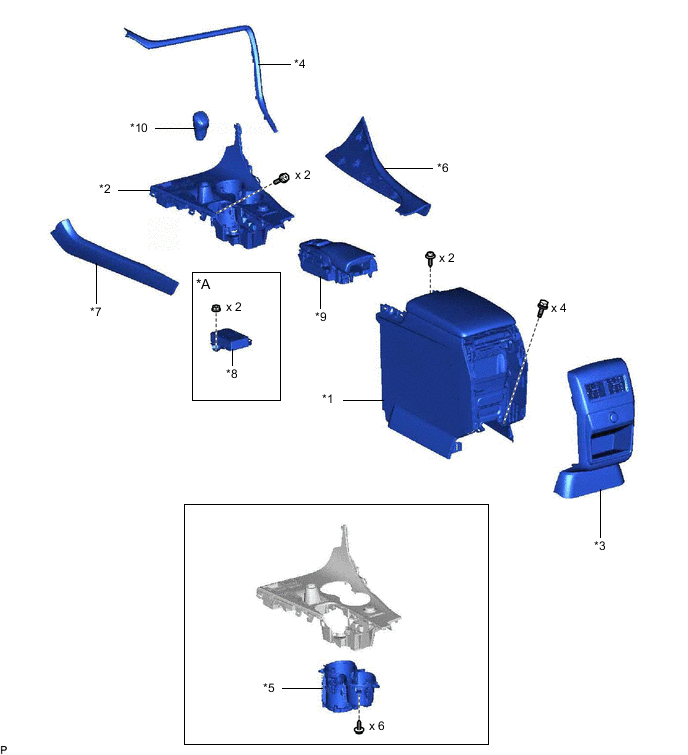

ILLUSTRATION
| *A | w/ Telematics Transceiver | - | - |
| *1 | CONSOLE BOX ASSEMBLY | *2 | CONSOLE PANEL SUB-ASSEMBLY |
| *3 | CONSOLE REAR END PANEL SUB-ASSEMBLY | *4 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT |
| *5 | INSTRUMENT PANEL CUP HOLDER ASSEMBLY | *6 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
| *7 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL | *8 | MAYDAY BATTERY WITH BRACKET |
| *9 | REMOTE TOUCH ASSEMBLY | *10 | SHIFT LEVER KNOB SUB-ASSEMBLY |
ILLUSTRATION
| *A | for Front Side | *B | for Rear Side |
| *1 | CONSOLE COMPARTMENT DOOR CUSHION | *2 | CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY |
| *3 | GLOVE COMPARTMENT BOX BAND | *4 | NO. 1 BOX PLATE UPPER |
| *5 | NO. 1 BOX SIDE PANEL | *6 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY |
| *7 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *8 | NO. 2 BOX SIDE PANEL |
| *9 | NO. 2 CONSOLE BOX DUCT | *10 | NO. 2 POWER OUTLET SOCKET ASSEMBLY |
| *11 | NO. 2 POWER OUTLET SOCKET COVER | *12 | REAR CONSOLE ARMREST ASSEMBLY |
| *13 | REAR CONSOLE BOX GARNISH | *14 | REAR CONSOLE BOX WIRE |
| *15 | NO. 9 CONSOLE BOX RETAINER | - | - |
