FRONT CONSOLE BOX COMPONENTS

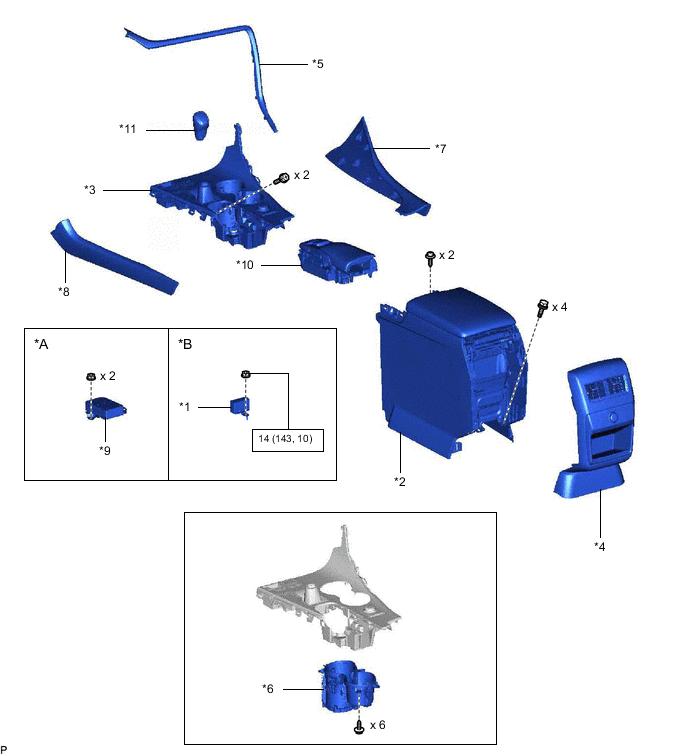

ILLUSTRATION
| *A | w/ Telematics Transceiver for G-BOOK | *B | w/ Telematics Transceiver except G-BOOK |
| *1 | ANTENNA DIVIDER | *2 | CONSOLE BOX ASSEMBLY |
| *3 | CONSOLE PANEL SUB-ASSEMBLY | *4 | CONSOLE REAR END PANEL SUB-ASSEMBLY |
| *5 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT | *6 | INSTRUMENT PANEL CUP HOLDER ASSEMBLY |
| *7 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL | *8 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |
| *9 | MAYDAY BATTERY WITH BRACKET | *10 | REMOTE TOUCH ASSEMBLY |
| *11 | SHIFT LEVER KNOB SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

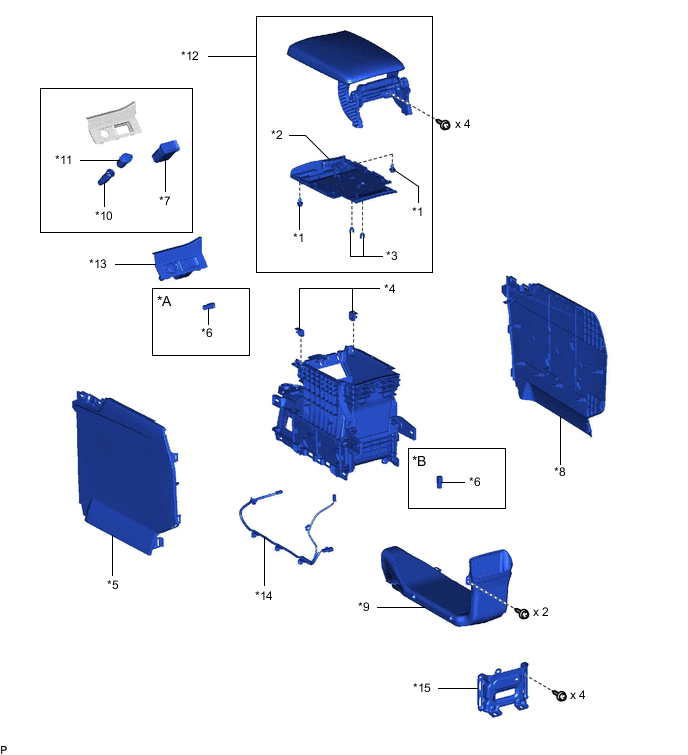

ILLUSTRATION
| *A | for Front Side | *B | for Rear Side |
| *1 | CONSOLE COMPARTMENT DOOR CUSHION | *2 | CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY |
| *3 | GLOVE COMPARTMENT BOX BAND | *4 | NO. 1 BOX PLATE UPPER |
| *5 | NO. 1 BOX SIDE PANEL | *6 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY |
| *7 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *8 | NO. 2 BOX SIDE PANEL |
| *9 | NO. 2 CONSOLE BOX DUCT | *10 | NO. 2 POWER OUTLET SOCKET ASSEMBLY |
| *11 | NO. 2 POWER OUTLET SOCKET COVER | *12 | REAR CONSOLE ARMREST ASSEMBLY |
| *13 | REAR CONSOLE BOX GARNISH | *14 | REAR CONSOLE BOX WIRE |
| *15 | NO. 9 CONSOLE BOX RETAINER | - | - |
