FRONT CONSOLE BOX DISASSEMBLY

PROCEDURE


  1. REMOVE REAR CONSOLE BOX GARNISH

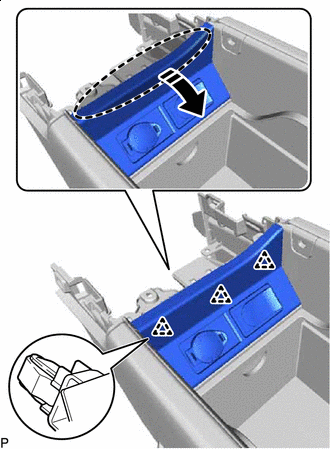

    1. A01RER3C01
      B005M6U Place Hand Here
      B005OOA Remove in this Direction

      Disengage the 3 clips as shown in the illustration.

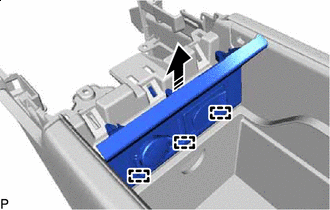

    2. A01RFG9C01
      B005OOA Remove in this Direction

      Disengage the 3 guides to remove the rear console box garnish as shown in the illustration.

  2. REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY

    Click here

  3. REMOVE NO. 2 POWER OUTLET SOCKET COVER

    Click here

  4. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

    Click here

  5. REMOVE NO. 1 BOX SIDE PANEL

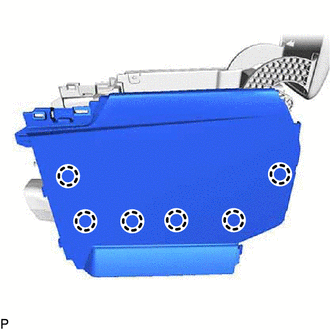

    1. A01RELA

      Disengage the 6 claws.

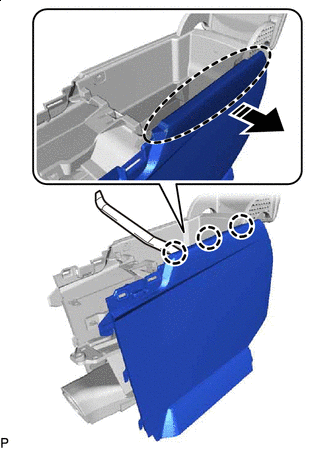

    2. A01R922C01
      B005M6U Insert Moulding Remover A Here
      B005OOA Remove in this Direction

      Using a moulding remover A, disengage the 3 claws to remove the No. 1 box side panel as shown in the illustration.

  6. REMOVE NO. 2 BOX SIDE PANEL

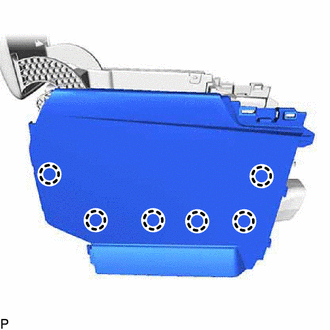

    1. A01REEX

      Disengage the 6 claws.

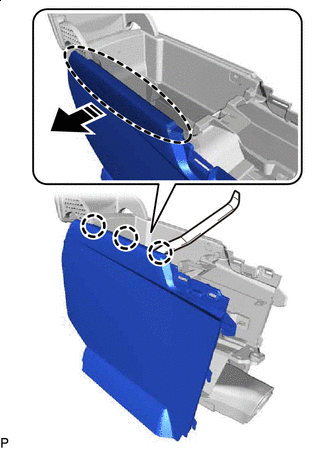

    2. A01RDLXC01
      B005M6U Insert Moulding Remover A Here
      B005OOA Remove in this Direction

      Using a moulding remover A, disengage the 3 claws to remove the No. 2 box side panel as shown in the illustration.

  7. REMOVE REAR CONSOLE ARMREST ASSEMBLY


    1. A01RB40

      Remove the 4 screws and rear console armrest assembly.

  8. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

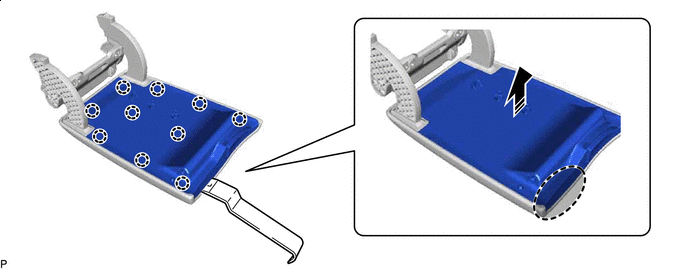

    1. Using a moulding remover B, disengage the 10 claws to remove the console compartment door lock sub-assembly as shown in the illustration.

      A01RBZIC01
      B005M6U Insert Moulding Remover B Here B005OOA Remove in this Direction

  9. REMOVE CONSOLE COMPARTMENT DOOR CUSHION

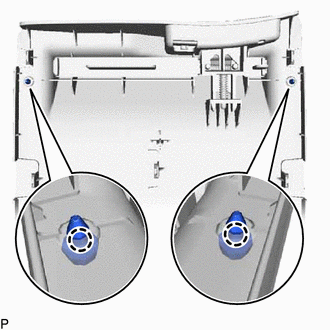

    1. A01R8UH

      Disengage the 2 claws to remove the 2 console compartment door cushions.

  10. REMOVE GLOVE COMPARTMENT BOX BAND

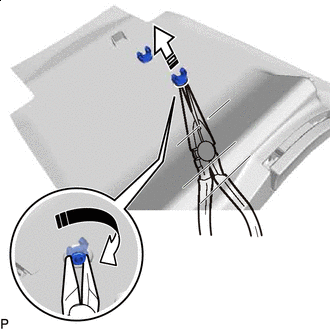

    1. A01RDT2C01
      B005OOA Remove in this Direction (1)
      B005OMH Remove in this Direction (2)

      Using pliers, remove the 2 glove compartment box bands as indicated by the arrows, in the order shown in the illustration.

  11. REMOVE NO. 2 CONSOLE BOX DUCT


    1. A01RAVX

      Disengage the clamp.

    2. A01RDPC

      Remove the 4 screws and No. 9 console box retainer.

    3. A01RAII

      Remove the 2 screws.

    4. Disengage the 6 claws to remove the No. 2 console box duct.

  12. REMOVE NO. 1 BOX PLATE UPPER

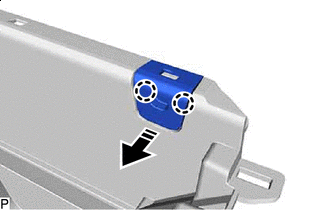

    1. A01RECFC01
      B005OOA Remove in this Direction

      Disengage the 2 claws to remove the No. 1 box plate upper as shown in the illustration.

      Tech Tips

      Use the same procedure for the RH side and LH side.

  13. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Side)

    Click here

  14. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Rear Side)

    Click here

  15. REMOVE REAR CONSOLE BOX WIRE


    1. A01RE15

      Disengage the 9 clamps to remove the rear console box wire.
