ROOM TEMPERATURE SENSOR(for Front) INSTALLATION

PROCEDURE

1. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR




   1. Connect the connector and aspirator.

   2.

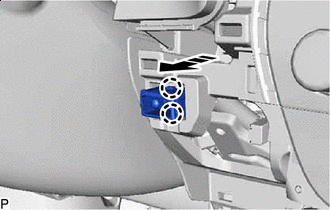

      Install in this Direction

      Engage the 2 claws to install the cooler (room temp. sensor) thermistor as shown in the illustration.

2. INSTALL LOWER INSTRUMENT FINISH PANEL SUB

   Click here

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

   Click here

4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

   Click here

5. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

   Click here

6. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click here
